SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional

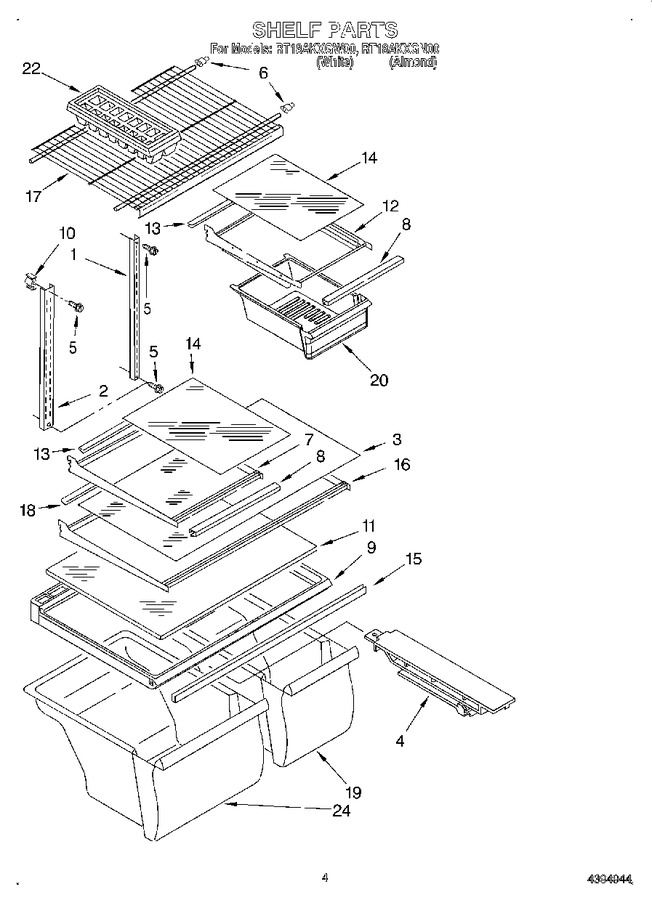

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	2177824		Glass, Full Shelf				$ 139.59
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
6	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
7	2163859		Shelf, Cantilever		Appelez-nous	-
8	2193314		Trim, Shelf Front		Appelez-nous	-
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 233.85
10	2189314		Screw Support		Appelez-nous	-
11	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 233.04
12	2176305		Pan Shelf, Cantilever		Appelez-nous	-
13	2193313		Trim, Shelf Rear		Appelez-nous	-
14	2169917		Glass, Shelf				$ 84.17
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 91.87
16	2163862		Shelf, Full Cantilever		Appelez-nous	-
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 111.06
18	2193394		Trim, Shelf Rear		Appelez-nous	-
19	W10856580		Pan, Crisper   (Replaces: 2190599)			Immediately	$ 159.33
20	WP2218127K		Pan, Meat   (Replaces: 2195404)				$ 132.12
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 43.06
24	W10854037		Pan, Crisper   (Replaces: 2190601)			Immediately	$ 161.27
100	2199039		Featurepak (includes 7, 8, 12, 13, 14, 20) Also See Ref.& Frz. Dr. Pages		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
