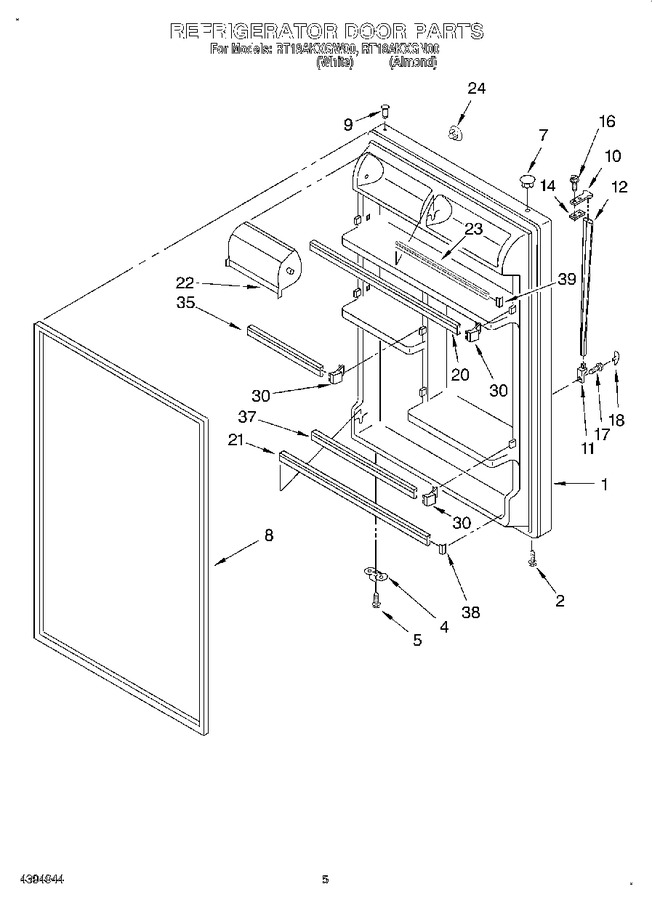

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes No.8 & No.9) (white) |
|
- | |||||
| 1 | 2183949 | Refrigerator Door (includes No.8 & No.9) (almond) |
|
- | |||||
| 2 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.53 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 8 | 2159057 | Door Gasket, Magnetic (service) |
|
Immediately | $ 168.76 | ||||
| 9 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 10 | 819342 | Handle End (almond) (Replaces: 9791772) |
|
Immediately | $ 46.18 | ||||
| 10 | 819342 | Handle End (white) (Replaces: 9791771) |
|
Immediately | $ 46.18 | ||||
| 11 | 819342 | Handle End, Side (almond) (Replaces: 2183142) |
|
Immediately | $ 46.18 | ||||
| 11 | 819342 | Handle End, Side (white) (Replaces: 2183141) |
|
Immediately | $ 46.18 | ||||
| 12 | 2148036 | Handle, Center (almond) |
|
- | |||||
| 12 | WP2162555 | Handle, Center (white) (Replaces: 2148035) |
|
Immediately | $ 141.86 | ||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 489006) |
|
$ 7.18 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 18 | 9791770 | Screw Cover (almond) |
|
- | |||||
| 18 | 9791769 | Screw Cover (white) |
|
$ 5.70 | |||||
| 20 | 2195941 | Trim, Door Shelf |
|
$ 47.96 | |||||
| 21 | WPW10421484 | Trim, Door Shelf (Replaces: 2195949) |
|
$ 122.63 | |||||
| 22 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 45.30 | ||||
| 23 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 111.89 | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 24 | 2189008 | Hole Plug, Handle (almond) |
|
- | |||||
| 30 | WP2195915 | Endcap, Trim (6) (Replaces: 2195915) |
|
$ 12.35 | |||||
| 35 | 2195942 | Trim, Door Shelf |
|
$ 56.34 | |||||
| 37 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 82.60 | |||||
| 38 | WP2156006 | Plug-trim (2) (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 39 | WP2156007 | Plug-trim (2) (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 100 | 2199039 | Featurepak (includes 20, 21, 22, 23, 35, 37, 38, 39) Also See Frz. Dr. & Shelf Pgs. |
|
- |
