SELECT A DIAGRAM

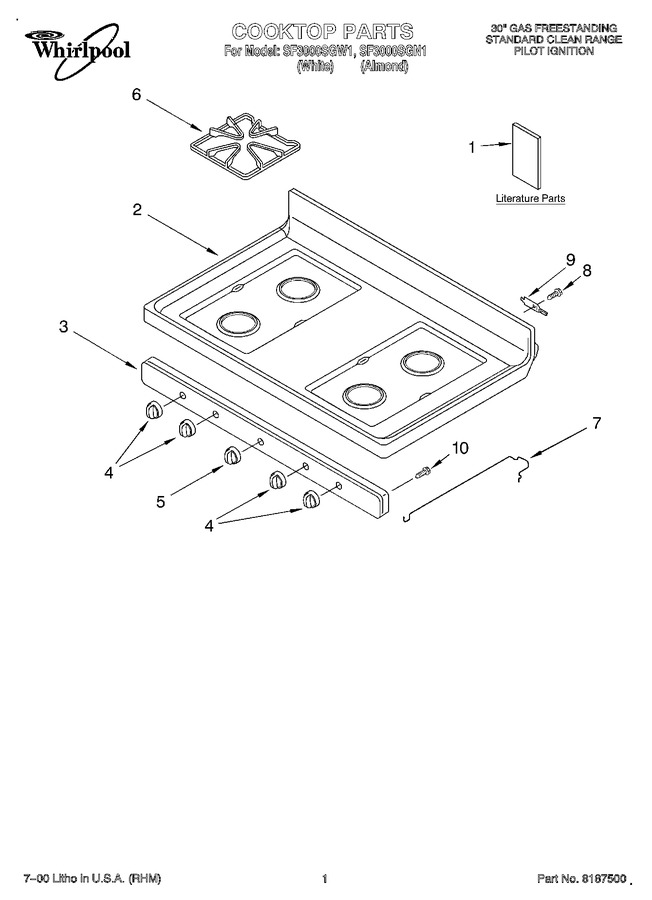

01 - Cooktop, Literature


02 - Backguard


03 - Manifold


04 - Chassis


05 - Oven And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8053705		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3195945		Literature Parts (installation Instr (template))		Appelez-nous	-
1	LIT8053369		Guide, Use & Care		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3186031		Cooktop (almond)		Appelez-nous	-
2	3186030		Cooktop (white)		Appelez-nous	-
3	3186017		Panel, Manifold		Appelez-nous	-
4	3186134		Knob, Burner (4)				$ 18.90
5	8273965		Knob, Thermostat		Appelez-nous	-
6	WPW10268483		Grate, Burner (4)   (Replaces: 8053458)				$ 126.02
7	WP3195812		Rod, Support (2)   (Replaces: 3195812)			Immediately	$ 7.86
8	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
9	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 11.86
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
