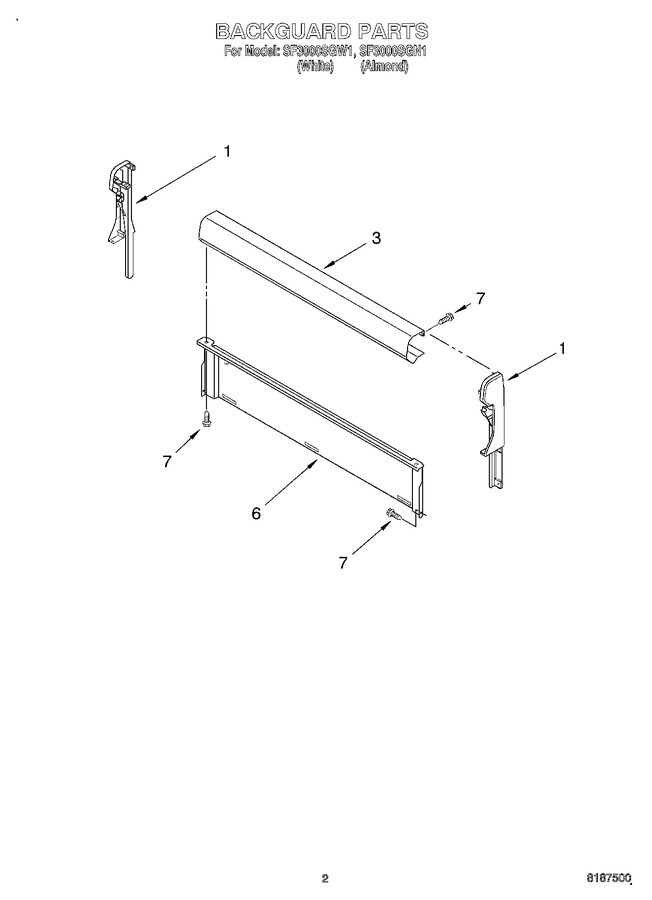

02 - Backguard
03 - Manifold
04 - Chassis
05 - Oven And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3195419 | Endcap (left Hand) |
|
- | |||||
| 1 | 3195420 | Endcap (right Hand) |
|
- | |||||
| 3 | 3196461 | Panel, Backguard |
|
- | |||||
| 6 | 8053910 | Shield, Heat |
|
- | |||||
| 7 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 |
