View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts

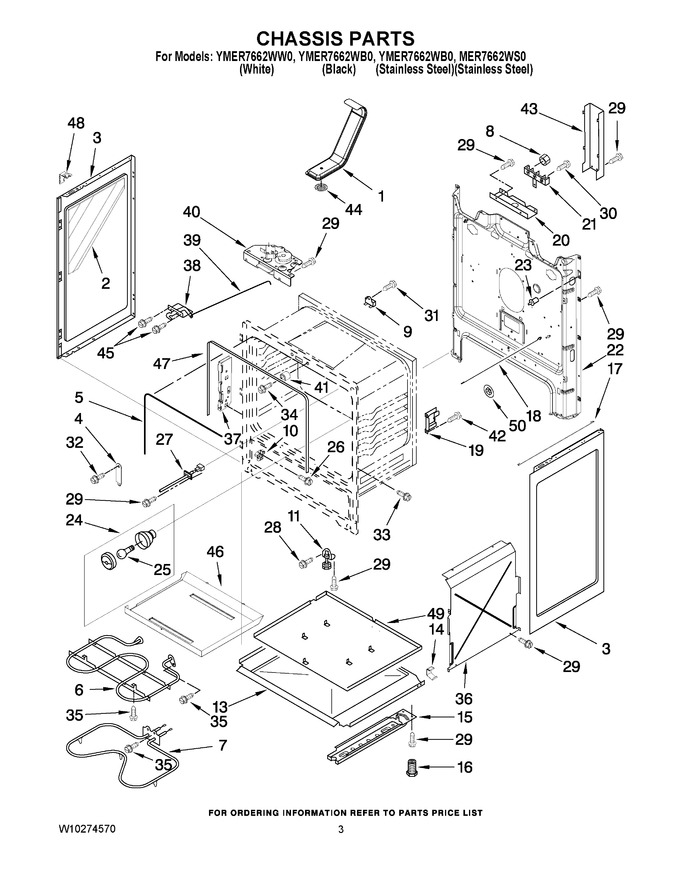

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Vent Tube Asmbly (Replaces: W10134285) |
|
Immediately | $ 236.70 | ||||
| 2 | W10182346 | Insulation |
|
$ 77.83 | |||||
| 3 | W11730303 | Panel, Side (2) (black) (Replaces: 8053832) |
|
Immediately | $ 160.65 | ||||
| 3 | WPW10575396 | Panel, Side (2) (white) (Replaces: 8053830) |
|
$ 182.19 | |||||
| 4 | 9761517 | Clip,door Mntg(2) |
|
$ 43.30 | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 172.30 | ||||
| 7 | WP9755770 | Element, Bake (hidden) (Replaces: 9755770) |
|
Immediately | $ 174.47 | ||||
| 8 | WP7103P027-60 | Nut (3) (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 10 | WPW10114344 | Glide, Drwr Top (Replaces: W10114344) |
|
Immediately | $ 7.71 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 78.41 | |||||
| 13 | W10134121 | Tray, Insulation |
|
$ 40.28 | |||||
| 14 | W10137382 | Clip, Panel (4) |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 9760314) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | W10727426 | Rod, Insul Retainr (Replaces: W10196451) |
|
Immediately | $ 76.59 | ||||
| 18 | 9757239 | Rod - Dr Switch |
|
$ 86.73 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 27.12 | ||||
| 22 | 8274034 | Back, Main |
|
$ 123.95 | |||||
| 23 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 146.71 | ||||
| 24 | W11594027 | Light Socket Assy (Replaces: 3196701) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 16.74 | |||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 34 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 | ||||
| 35 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.60 | ||||
| 36 | W10450380 | Retainer, Side (2) (Replaces: 9758238) |
|
- | |||||
| 37 | W10647259 | Brkt-mounting (Replaces: 9760407) |
|
Immediately | $ 8.39 | ||||
| 38 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 230.72 | |||||
| 39 | W10078380 | Rod, Latch |
|
$ 85.42 | |||||
| 40 | WPW10107840 | Latch Asy, Rear (Replaces: W10107840) |
|
Immediately | $ 116.15 | ||||
| 41 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 50.45 | ||||
| 42 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 43 | WPW10326122 | Cover, Box (Replaces: 9758283) |
|
$ 125.64 | |||||
| 44 | 9761301 | Screen, Catalyst |
|
$ 133.11 | |||||
| 45 | W11169708 | Screw (2) (Replaces: 3196560) |
|
$ 13.36 | |||||
| 46 | W10183712 | Tray-bake, Hidden |
|
$ 219.56 | |||||
| 47 | W10010350 | Oven Seal, Flange |
|
$ 24.61 | |||||
| 48 | W10183541 | Clip, Spring |
|
- | |||||
| 49 | W10134125 | Shield, Heat |
|
$ 143.43 | |||||
| 50 | 8053915 | Insulation, Vent (Replaces: 8272613) |
|
$ 11.75 | |||||
| 50 | WP3400968 | Nut, Push On (Replaces: 3400968) |
|
Immediately | $ 7.52 | ||||
| 50 | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 52.37 | ||||
| 50 | W10326347 | Insulation, Back (Replaces: W10219986) |
|
- |
