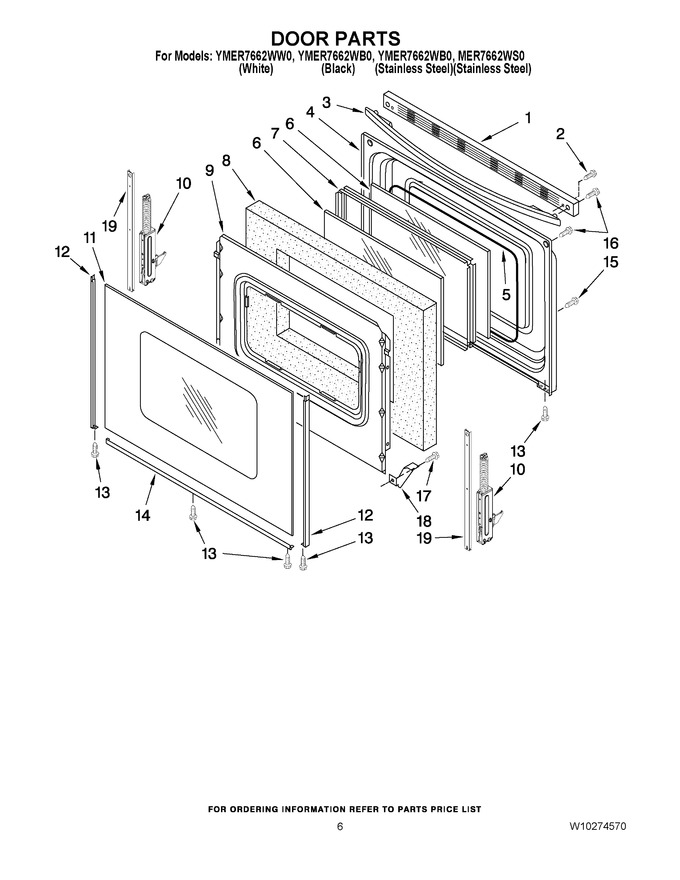

| 1 | W10817433 | Trim, Top (white) (Replaces: W10144869) |
|
Immediately | $ 162.27 | ||||
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10144870) |
|
Immediately | $ 157.83 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 7.33 | ||||
| 3 | W10111309 | Handle, Door (white) |
|
- | |||||
| 3 | W10111310 | Handle, Door (black) |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | W10238912 | Seal, Window |
|
$ 72.31 | |||||
| 6 | WP8053948 | Glass, Inner (2) (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 197.86 | ||||
| 11 | WPW10118454 | Glass, Outer (white) (Replaces: W10106404) |
|
$ 292.42 | |||||
| 11 | W10106405 | Glass, Outer (black) |
|
$ 128.38 | |||||
| 12 | W10761014 | Trim, Side (black Right Hand) (Replaces: 8523165) |
|
Immediately | $ 65.66 | ||||
| 12 | 8184858 | Trim, Side (stainless Rh) (Replaces: W10113925) |
|
$ 151.97 | |||||
| 12 | W10761018 | Trim, Side (black Left Hand) (Replaces: 8523171) |
|
Immediately | $ 49.32 | ||||
| 12 | WP8523166 | Trim, Side (white Right Hand) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 12 | WP8523172 | Trim, Side (white Left Hand) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 12 | 8184858 | Trim, Side (stainless Lh) (Replaces: W10113926) |
|
$ 151.97 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 18 | W10137382 | Clip, Panel Side |
|
Immediately | $ 43.58 | ||||
| 19 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 |
