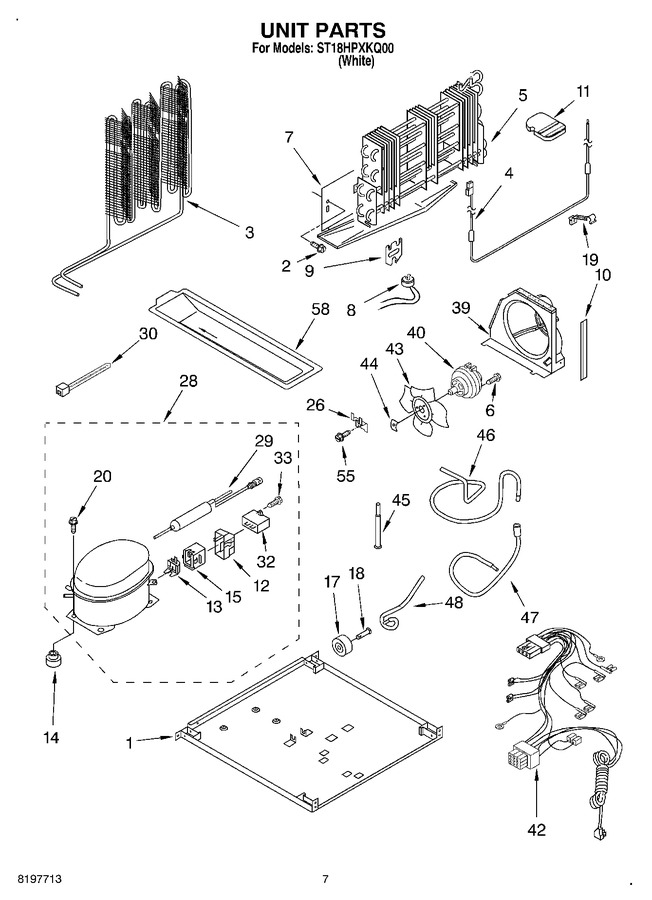

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2205341 | Plate, Unit Mounting |
|
- | |||||
| 2 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 3 | 2212599 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2176300) |
|
$ 116.58 | |||||
| 5 | 2195391 | Evaporator Assy. |
|
- | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 6.80 | ||||
| 7 | 2172619 | Drain Pan |
|
- | |||||
| 8 | WP4387503 | Defrost Bimetal (Replaces: 2182380) |
|
Immediately | $ 43.10 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2163780 | Extension, Air Baffle |
|
- | |||||
| 11 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 12 | WP2162358 | Cover (Replaces: 4387731) |
|
$ 85.76 | |||||
| 13 | 4387913 | Overload ((service - Includes Relay)) (Replaces: 4387766) |
|
Immediately | $ 75.95 | ||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 15 | 8201769 | Start-device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2213105) |
|
$ 173.71 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 981126) |
|
Immediately | $ 17.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw, Compressor (Replaces: 489373) |
|
$ 7.01 | |||||
| 26 | 2166683 | Clip, Capacitator |
|
- | |||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 28 | W10309988 | Compressor (includes Items 12, 13, 15, 29, 32 & 33) (also Order (Replaces: 2216049) |
|
Immediately | $ 528.56 | ||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 81.59 | ||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 51.42 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 51.42 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.47 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2169373) |
|
Immediately | $ 52.97 | ||||
| 32 | WP4387764 | Capacitator (service) (Replaces: 4387764) |
|
$ 167.30 | |||||
| 33 | 3400518 | Screw |
|
$ 12.27 | |||||
| 39 | 2198921 | Air Baffle |
|
- | |||||
| 40 | W10822259 | Motor, Condenser (Replaces: 2188537) |
|
Immediately | $ 241.66 | ||||
| 42 | 2187358 | Wire Assy. Unit |
|
- | |||||
| 43 | 2190685 | Blade, Fan |
|
$ 52.00 | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 7.59 | |||||
| 45 | 2212603 | Tube, Transition |
|
- | |||||
| 46 | 2205533 | Tube, Discharge |
|
- | |||||
| 47 | 2219514 | Tube, Suction |
|
- | |||||
| 48 | 2154109 | Tube, Process |
|
$ 68.63 | |||||
| 55 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 13.28 | ||||
| 58 | 2210451 | Evap. Tray |
|
$ 66.37 |
