SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 43.06
2	2172683		Gasket, Crisper Cover		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2200768)				$ 233.85
4	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 159.33
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 91.87
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 32.83
8	WP2176275		Shelf   (Replaces: 2176275)				$ 111.06
9	W10856580		Pan, Crisper   (Replaces: 2200657)			Immediately	$ 159.33
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 233.04
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 7.36
13	W10136387A		Bin, Egg   (Replaces: 2216624)				$ 17.59
14	WP2218127K		Meat Pan   (Replaces: 2201031K)				$ 132.12
15	2188527		Trim, Shelf Front		Appelez-nous	-
16	2188517		Trim, Shelf Side				$ 54.51
17	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
18	2188525		Trim, Shelf Front		Appelez-nous	-
19	WP2188689		Trim, Shelf Rear   (Replaces: 2188520)				$ 109.40
20	2200985		Glass, Half Shelf		Appelez-nous	-
21	2200986		Glass, Full Shelf				$ 120.53
22	2201109		Shelf, Cantilever				$ 121.04
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
24	WP2188689		Trim, Shelf Rear   (Replaces: 2188522)				$ 109.40
25	2201111		Pan Shelf, Cantilever				$ 168.49
27	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
28	W10777924		Wine/ Egg Rack   (Replaces: 2179404K)				$ 22.30
29	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 139.50
29	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
29	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
29	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
29	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
29	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
29	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
29	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
29	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
29	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
29	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
29	350942		Primer White (13 Oz. Spray Can)				$ 84.73
29	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
29	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
29	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
29	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
29	833938		Kit, Terminal Connector				$ 7.62
29	1117510		Torx Key				$ 5.84
29	2201101E		Shelf, Cantilever		Appelez-nous	-
29	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
29	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
29	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
29	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
29	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
29	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
29	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
29	799832		Kit. Porcelain Repair (white)		Appelez-nous	-

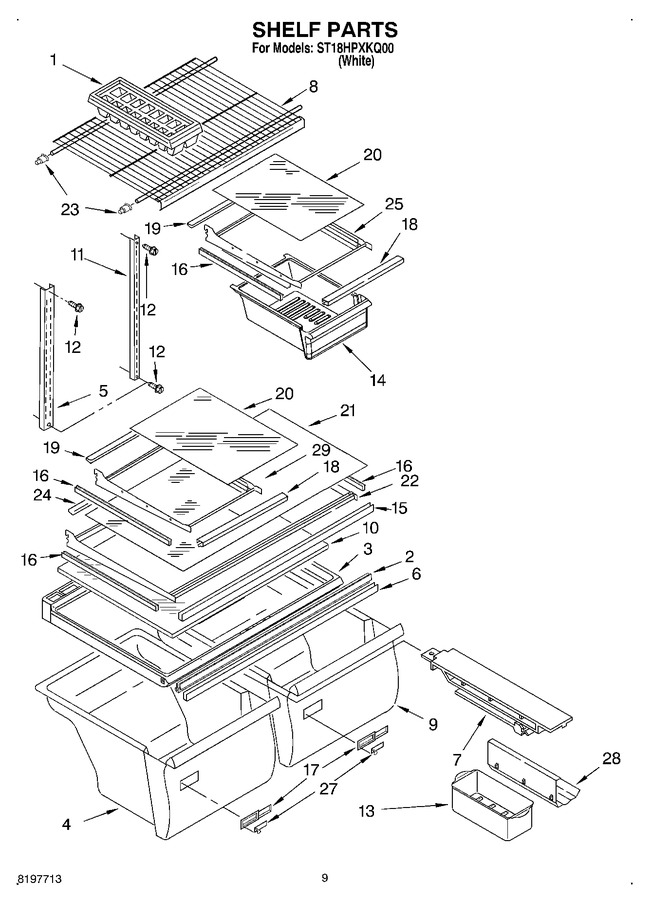

    View Diagram in Separate Window       Print Part List
