01 - Cooktop Parts

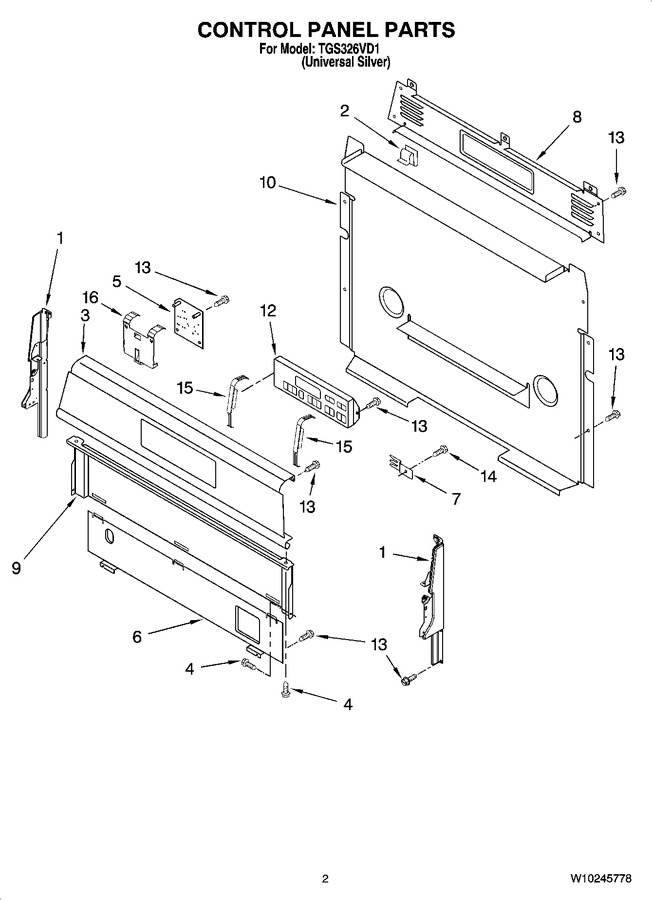

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (left Hand-black) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (right Hand-black) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 3 | W10202186 | Panel, Control |
|
- | |||||
| 4 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 5 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 363.24 | ||||
| 6 | 8053505 | Shield, Lower Heat |
|
$ 149.30 | |||||
| 7 | 8523412 | Bracket, Support |
|
$ 151.11 | |||||
| 8 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 9 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 10 | W10184370 | Cover, Lower |
|
- | |||||
| 12 | W10203145 | Control, Range |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 15 | W11230932 | Bracket, Eoc Mtg. (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 16 | W11230932 | Bracket, Dsi (Replaces: W10138683) |
|
Immediately | $ 76.33 |
