01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Broiler Parts

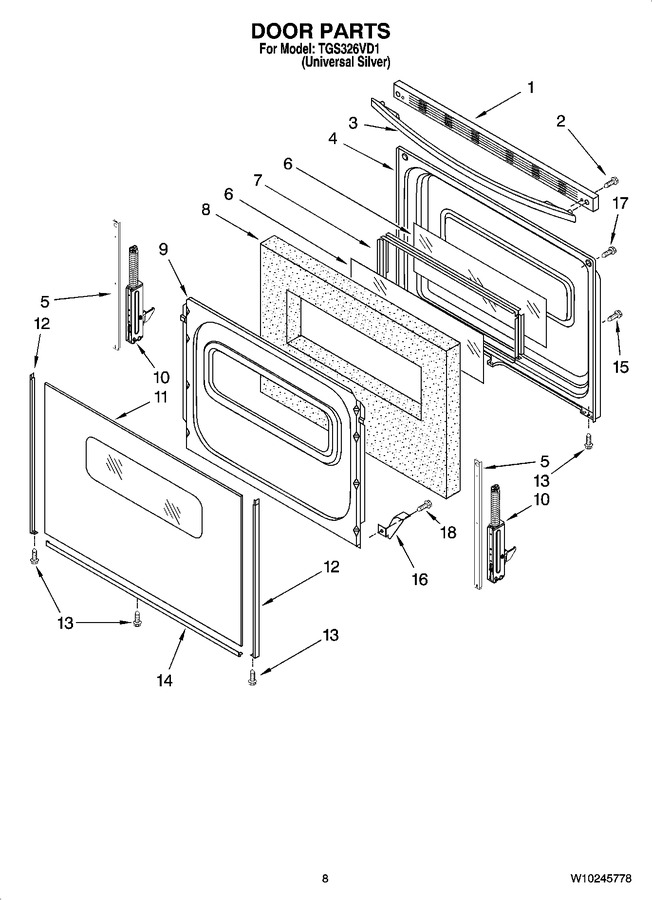

06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016380 | Trim, Top |
|
$ 80.76 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | W10202223 | Handle, Door |
|
- | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | W11502236 | Strap, Door (2) (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: 3186289) |
|
Immediately | $ 81.08 | ||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 91.23 | ||||
| 9 | W11539580 | Retainer, Insul. (Replaces: 9761357) |
|
$ 209.98 | |||||
| 10 | W10347464 | Hinge, Door (2) (Replaces: 9761496) |
|
Immediately | $ 120.58 | ||||
| 11 | W10144949 | Glass, Outer Door |
|
- | |||||
| 12 | 8184858 | Trim, Door Side (right Hand) (Replaces: W10113925) |
|
$ 151.97 | |||||
| 12 | 8184858 | Trim, Door Side (left Hand) (Replaces: W10113926) |
|
$ 151.97 | |||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 14 | W10067550 | Trim, Bottom |
|
- | |||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 16 | W10137382 | Clip, Panel (2) |
|
Immediately | $ 43.58 | ||||
| 17 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 3400964 | Clip |
|
$ 80.10 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| W11839019 | Anti-tip Kit (Replaces: W10017440) |
|
Immediately | $ 25.69 | |||||
| W10182840 | Harness, Wire (main) |
|
- | ||||||
| WPW10701462 | Harness, Wire (bake/broil) (Replaces: W10170250) |
|
$ 90.60 | ||||||
| W10322362 | Harness, Wire (cooktop-spark) (Replaces: W10174458) |
|
$ 45.13 | ||||||
| W10045060 | Harness, Wire (gnd, Dsi, Short) |
|
$ 8.07 | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 80.10 | ||||||
| 3196696 | Clip, Wire |
|
- | ||||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | ||||||
| W11244557 | Screw, Hrns Clip (Replaces: 3196173) |
|
$ 12.86 | ||||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 52.37 | |||||
| 3195927 | Tie,wire |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 78.50 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 52.37 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 46.58 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | |||||
| 8212473 | Paint, Pressurized Spray (12 Oz.) (universal Silver) |
|
Immediately | $ 28.27 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 53.90 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 84.73 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 |
