01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

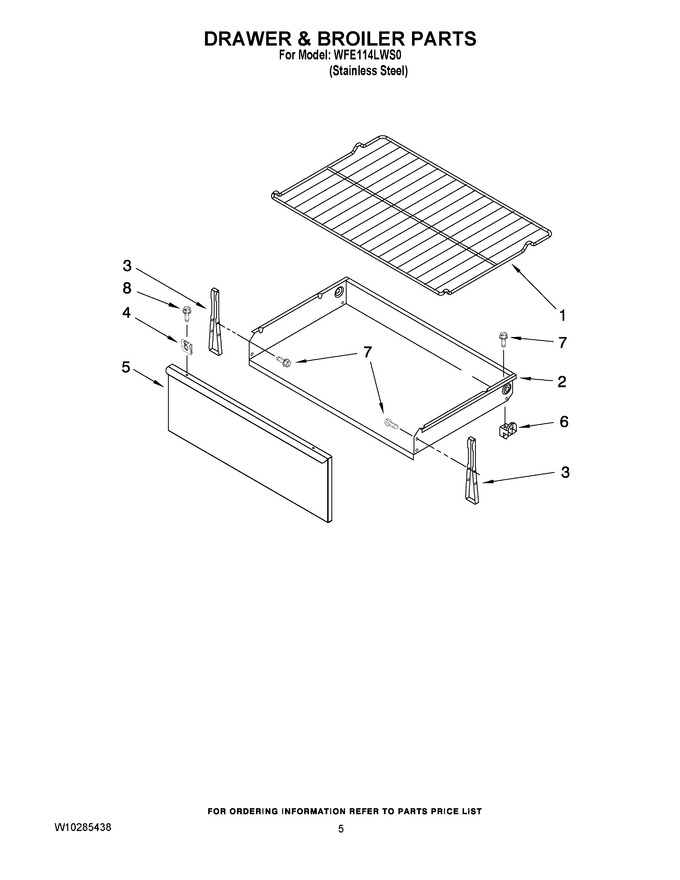

04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (2) (Replaces: W10268578) |
|
Immediately | $ 54.79 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | W10838990 | Bracket, Drawer(2) (Replaces: 9758200) |
|
Immediately | $ 80.06 | ||||
| 4 | WP9781235 | U-nut (Replaces: 9781235) |
|
$ 11.30 | |||||
| 5 | W10237657 | Panel, Drawer Frnt (stainless Steel) |
|
$ 116.43 | |||||
| 6 | WP8053334 | Glide, Drawer (2) (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 8 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 13.25 |
