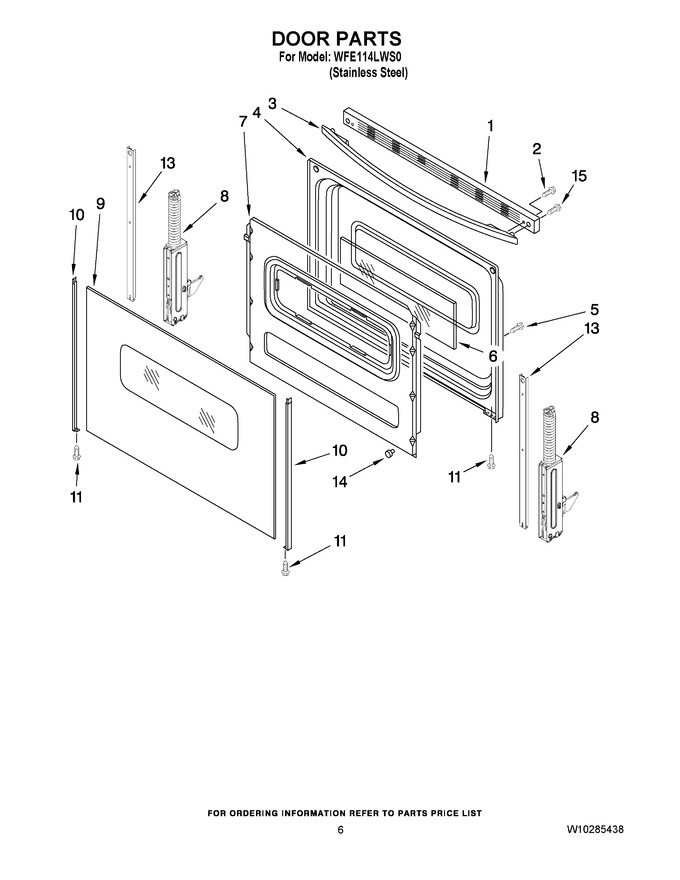

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10144870) |
|
Immediately | $ 157.83 | ||||
| 2 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 7.33 | ||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10118385) |
|
Immediately | $ 252.10 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8053948 | Window, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | W11685635 | Retainer, Insul. (Replaces: 9761501) |
|
$ 169.46 | |||||
| 8 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 197.86 | ||||
| 9 | W10144884 | Glass, Outer (black) |
|
- | |||||
| 10 | 8184858 | Trim, Side (black Left Hand) (Replaces: W10113926) |
|
$ 151.97 | |||||
| 10 | 8184858 | Trim, Side (black Right Hand) (Replaces: W10113925) |
|
$ 151.97 | |||||
| 11 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 13 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 14 | 238614 | Bumper, Door (2) (Replaces: 3195809) |
|
$ 76.31 | |||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 |
