View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

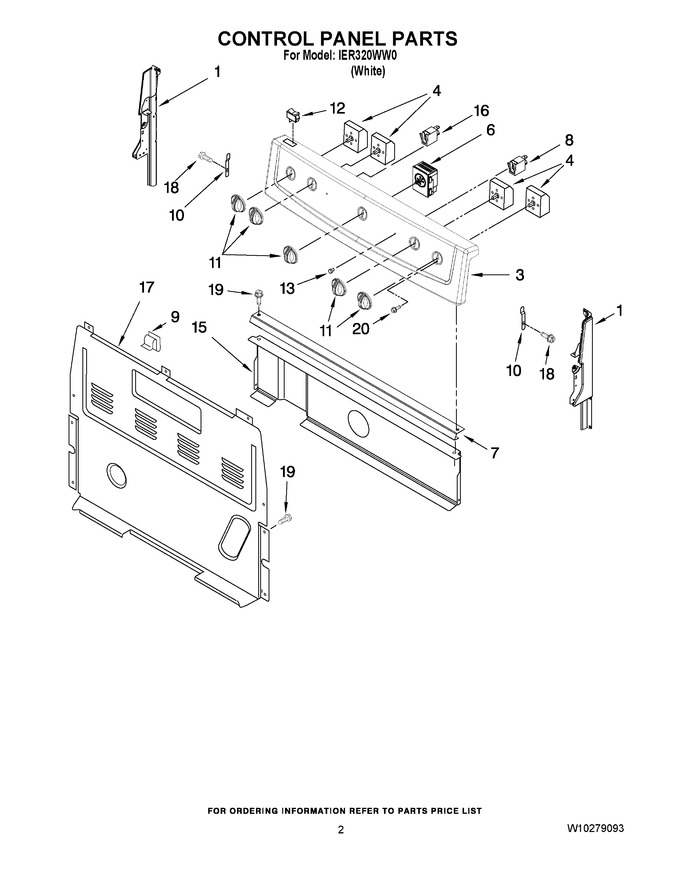

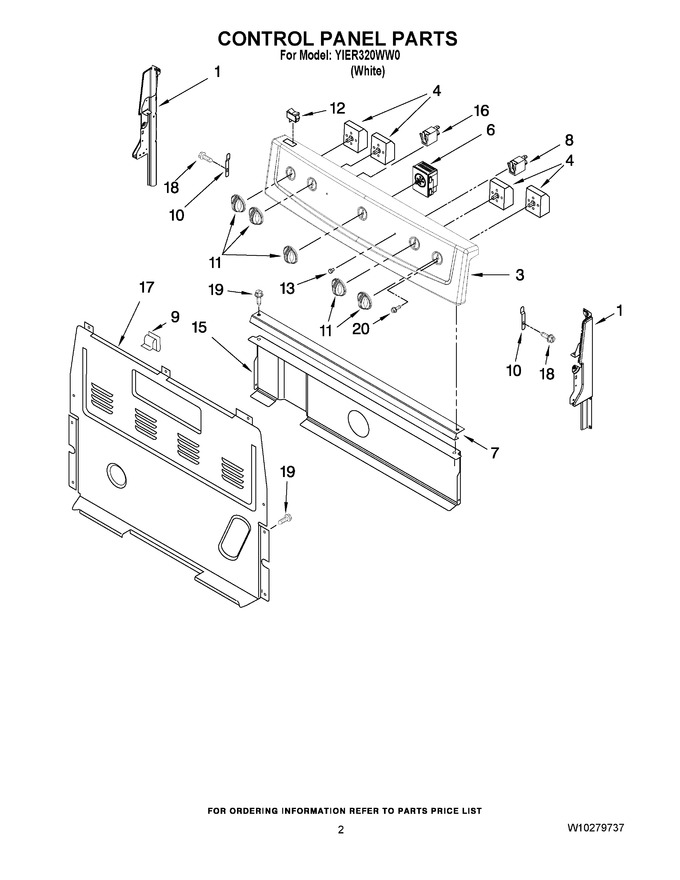

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap, Left Hand (white) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap, Right Hand (white) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 3 | W10252573 | Panel, Backguard (white) |
|
- | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 6 | WP9762215 | Switch, Selector (Replaces: 9762215) |
|
Immediately | $ 328.65 | ||||
| 7 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 8 | WP8523266 | Indicator, 250v (Replaces: 8523266) |
|
$ 105.75 | |||||
| 9 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 10 | 3196200 | Clip, Spring (2) |
|
$ 9.41 | |||||
| 11 | W10259208 | Knob (5) (white) |
|
$ 72.26 | |||||
| 12 | 3149360 | Switch, Rocker |
|
$ 89.01 | |||||
| 13 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 15 | 8053912 | Shield, Heat |
|
$ 34.55 | |||||
| 16 | WP8523265 | Indicator, 125v (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 17 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 18 | 3196166 | Screw |
|
$ 6.62 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 20 | WP3400882 | Bolt (Replaces: 3400882) |
|
Immediately | $ 6.80 |
