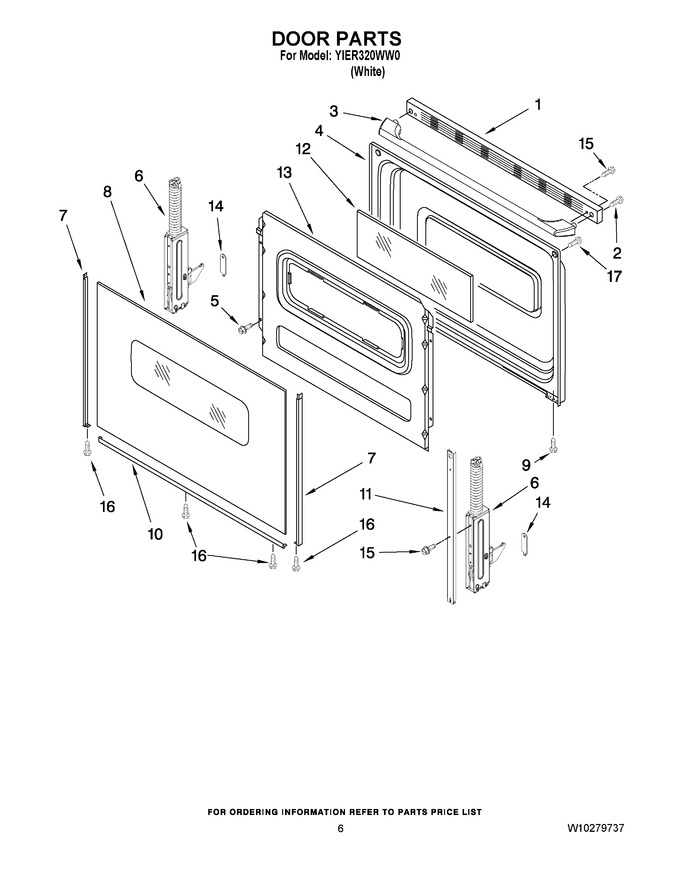

05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 2 | WP3196164 | Trim, Top (screw) (Replaces: 3196164) |
|
Immediately | $ 9.93 | ||||
| 3 | W10202219 | Handle, Door (white) |
|
$ 265.19 | |||||
| 4 | 9761340 | Liner, Door |
|
$ 325.01 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W10347465 | Hinge, Door (2) (Replaces: 9761494) |
|
$ 108.34 | |||||
| 7 | WP8523166 | Trim, Door (2) (right Hand-white) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 7 | WP8523172 | Trim, Door (2) (left Hand-white) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 8 | WP9762476 | Glass, Door (white) (Replaces: 9762476) |
|
$ 299.39 | |||||
| 9 | W10491985 | Glass, Door (screw) (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 10 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 11 | W11502236 | Strap, Door (Replaces: W10113759) |
|
Immediately | $ 24.91 | ||||
| 12 | WP9758163 | Window, Inner (Replaces: 9758163) |
|
$ 145.91 | |||||
| 13 | 9761500 | Retainer, Insul. |
|
$ 293.06 | |||||
| 14 | 9761517 | Clip, Dr Mntg (2) |
|
$ 43.30 | |||||
| 15 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 16 | WP3196175 | Screw (4) (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 17 | WPW10200660 | Screw (2) (Replaces: W10200660) |
|
Immediately | $ 7.42 |
