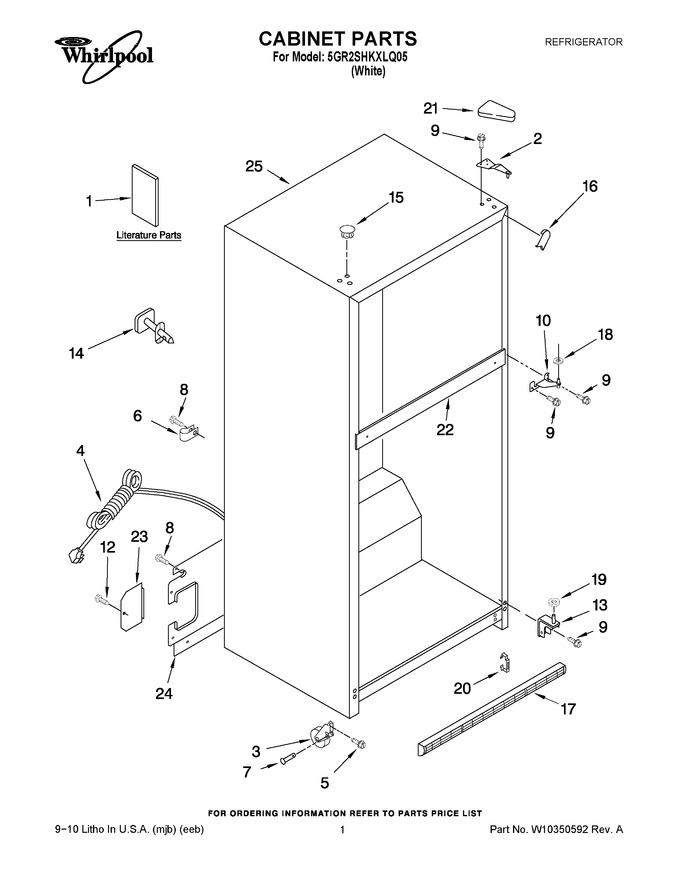

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142155 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2318229 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./fzr. |
|
$ 30.30 | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | WP2166108 | Roller, Front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 4 | W10123575 | Service Cord (water Supply Line) |
|
- | |||||
| 5 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 6 | 489348 | Clamp-cord |
|
- | |||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 8 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 9 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 10 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 82.82 | ||||
| 12 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 13 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 14 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 15 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 16 | WPW10283959 | Corner Filler (2) (Replaces: W10283959) |
|
$ 7.39 | |||||
| 17 | 2254313 | Grille |
|
$ 41.62 | |||||
| 18 | WP489467 | Washer, Plain (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 19 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 20 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 21 | WP2213360 | Cover, Hinge (Replaces: 2213360) |
|
$ 18.17 | |||||
| 22 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 23 | 2166251 | Cover-valve,water |
|
$ 6.43 | |||||
| 24 | 2302358 | Cover, Unit |
|
$ 57.60 | |||||
| 25 | N/P | Cabinet (not A Serviceable Part) |
|
- |
