View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

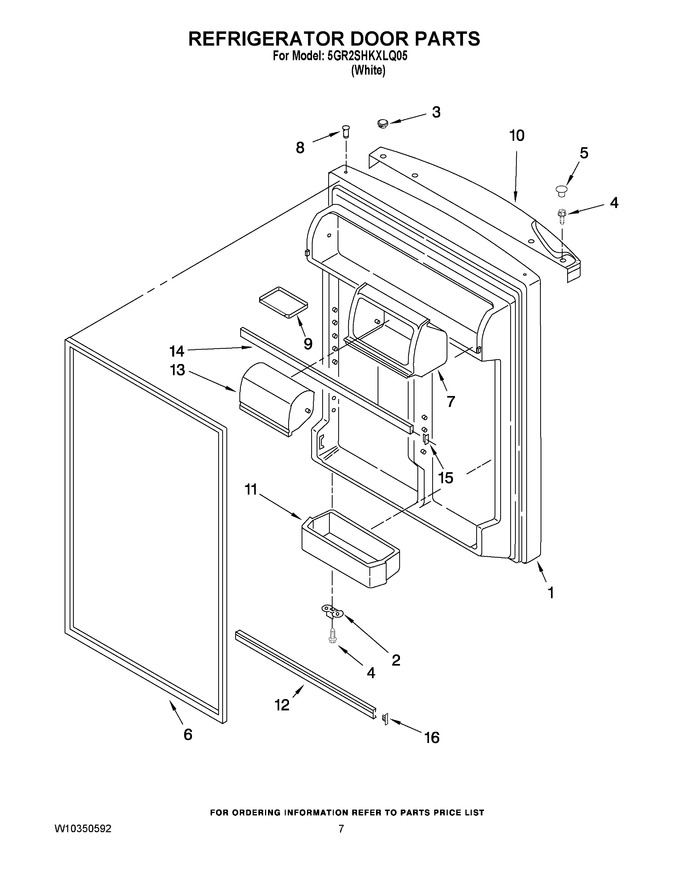

| 1 | 2202519 | Refrigerator Door (includes No.6 & No.8) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2204837 | Hole Plug, Endcap |
|
$ 27.77 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2212648 | Hole Plug Hinge Sleeve (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | 2159061 | Door Gasket, Magnetic (Replaces: 2202875) |
|
Immediately | $ 165.30 | ||||
| 7 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 8 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 9 | 2195388 | Tray, Door |
|
- | |||||
| 10 | 2212624 | Handle |
|
- | |||||
| 11 | WP2204813 | Bin, Door Shelf (3) (Replaces: 2179606) |
|
Immediately | $ 73.08 | ||||
| 12 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 103.27 | |||||
| 13 | 2218109 | Door Compartment |
|
$ 33.66 | |||||
| 14 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 15 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 16 | WP2156006 | Plug, Trim (Replaces: 2156006) |
|
Immediately | $ 11.51 |
