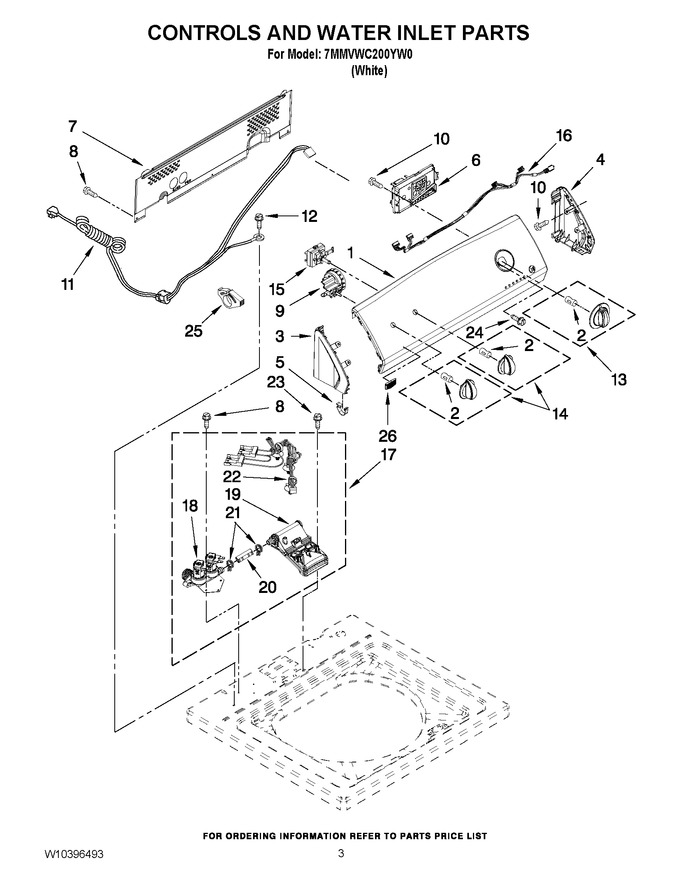

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10354026		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
3	WPW10251358		Cap, End (l.h.) (includes Item 5)   (Replaces: W10251358)				$ 46.28
4	WPW10251355		Cap, End (r.h.) (includes Item 5)   (Replaces: W10251355)				$ 46.25
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10395599		Control Unit Assy		Appelez-nous	-
7	WPW10420985		Panel, Console Rear Cover   (Replaces: W10251310)				$ 237.47
8	WP489069		Screw, 8-18 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
9	WPW10268911		Switch, Water Level   (Replaces: W10268911)			Immediately	$ 171.59
10	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
11	WPW10525194		Cord, Power   (Replaces: W10276649)				$ 147.07
12	W10846509		Screw, Power Cord Ground   (Replaces: 3400076)			Immediately	$ 7.38
13	WPW10327522		Knob, Timer   (Replaces: W10327522)				$ 45.87
14	WPW10327523		Knob, Control   (Replaces: W10327523)				$ 49.62
15	WPW10285512		Switch, Rotary Encoder   (Replaces: W10285512)			Immediately	$ 171.42
16	W10291178		Harness, Upper		Appelez-nous	-
17	WPW10432360		Inlet Assembly, Water   (Replaces: W10357189)				$ 228.20
18	WPW10352256		Valve, Water Mixing   (Replaces: W10352256)				$ 185.86
19	WPW10441423		Vacuum Break   (Replaces: W10334611)				$ 81.30
20	W10238347		Hose, Vacuum Break				$ 23.27
21	WP596669		Clamp, Hose   (Replaces: W10117298)			Immediately	$ 7.94
22	WPW10344775		Harness, Valve   (Replaces: W10337345)				$ 154.36
23	WP8281163		Screw, 8-16 X 1/2   (Replaces: 8281163)			Immediately	$ 9.63
24	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
25	WPW10663966		Clamp   (Replaces: W10348582)				$ 201.83
26	W10199708		Badge				$ 47.95
