01 - Top And Cabinet Parts
02 - Controls And Water Inlet Parts

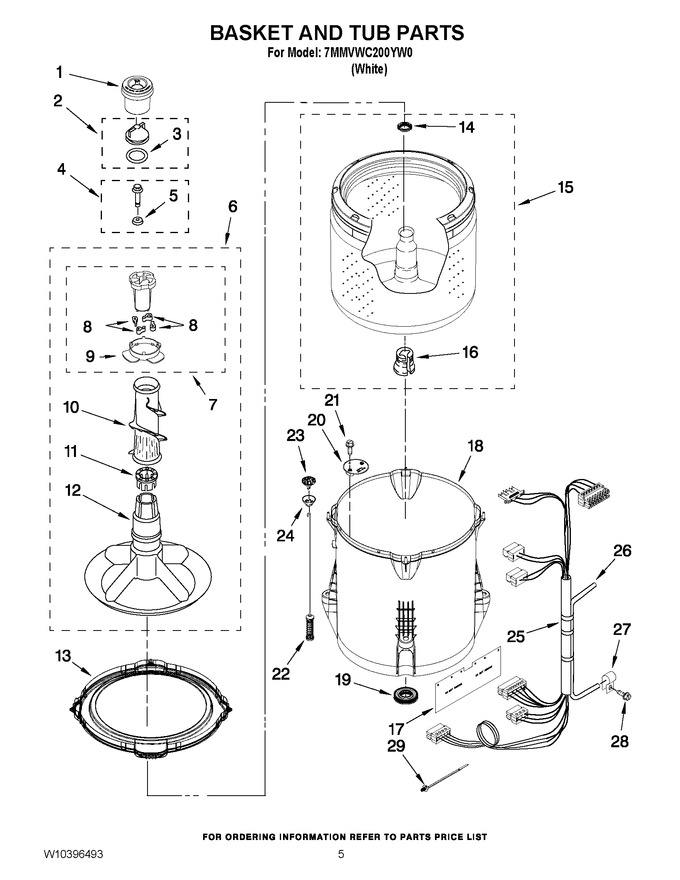

03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8575076A | Dispenser, Fabric Softener (Replaces: 8575076) |
|
Immediately | $ 28.52 | ||||
| 2 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 11.72 | ||||
| 3 | WPW10072840 | Seal, Inner Cap (Replaces: W10072840) |
|
Immediately | $ 7.85 | ||||
| 4 | W10772621 | Screw & Washer Assembly (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 5 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 6 | 285565 | Agitator, Complete Assembly (Replaces: 3348117) |
|
Immediately | $ 298.78 | ||||
| 7 | 285811 | Cam, Driven (Replaces: 3363663) |
|
Immediately | $ 29.33 | ||||
| 8 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 9 | WP3363661 | Bearing, Cam (Replaces: 3363661) |
|
$ 7.41 | |||||
| 10 | WP3348752 | Clothes Mover (Replaces: 3348752) |
|
$ 231.72 | |||||
| 11 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 12 | WP3347288 | Agitator (Replaces: 3347288) |
|
Immediately | $ 134.26 | ||||
| 13 | WPW10215107 | Ring-tub (Replaces: W10215107) |
|
Immediately | $ 198.56 | ||||
| 14 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 15 | W10349185 | Basket Assembly (Replaces: W10238308) |
|
$ 350.41 | |||||
| 16 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 17 | W10339098 | Shield, Splash |
|
$ 23.27 | |||||
| 18 | W10371566 | Tub (includes Item 19) (Replaces: W10238320) |
|
$ 320.71 | |||||
| 19 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 20 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 21 | WP8533928 | Screw, 8-18 X 3/4 (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 22 | W10780048 | Damper Assembly, Tub Suspension (set Of 4-includes Items 23 & 24) (Replaces: W10257087) |
|
Immediately | $ 84.13 | ||||
| 23 | W10215136 | Ball, Suspension (set Of 4 - Includes Item 24) |
|
- | |||||
| 24 | W10256551 | Bushing, Suspension (set Of 4 - Includes Item 23) |
|
- | |||||
| 25 | W10297444 | Harness, Lower (includes Items 26 & 29) |
|
$ 119.93 | |||||
| 26 | W10297442 | Hose, Pressure Switch |
|
$ 25.07 | |||||
| 27 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 8.58 | ||||
| 28 | WPW10109200 | Screw, 10-16 X 3/4 (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 29 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.18 |
