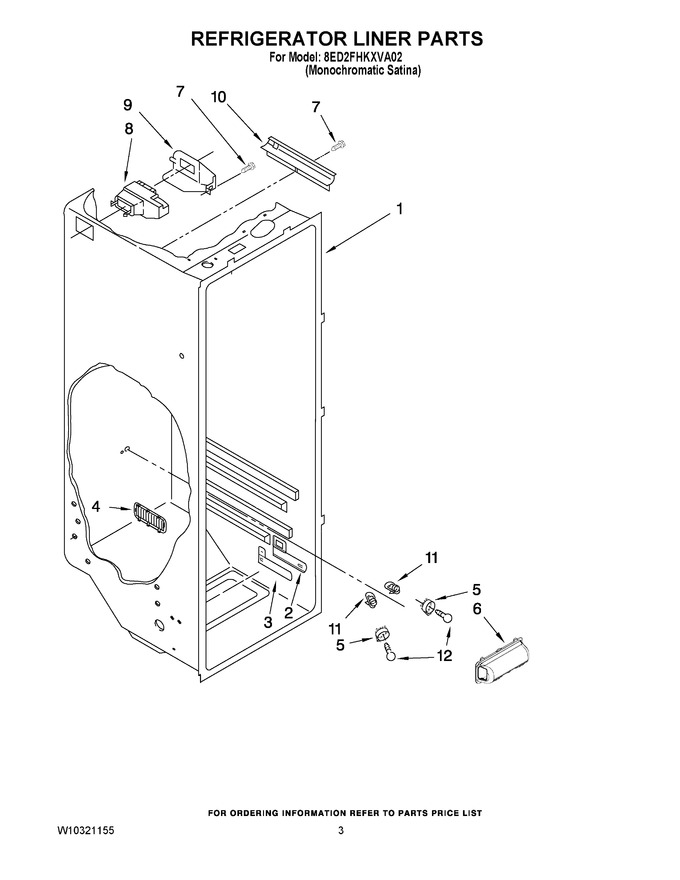

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10175967 | Escutcheon, Meat Pan Control |
|
$ 77.20 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2257741 | Louver |
|
- | |||||
| 5 | WP2175210 | Shroud (Replaces: 2175210) |
|
$ 78.07 | |||||
| 6 | W11239891 | Light Lens (Replaces: W10166019) |
|
$ 91.37 | |||||
| 7 | W10759522 | Screw (2) (Replaces: 486298) |
|
$ 7.42 | |||||
| 8 | WPW10151374 | Air Diffuser Assembly (Replaces: W10151374) |
|
Immediately | $ 94.29 | ||||
| 9 | 2152019 | Air Diffuser Cover |
|
$ 81.30 | |||||
| 10 | W10252495 | Cover, Conduit |
|
- | |||||
| 11 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 104.10 | ||||
| 12 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 |
