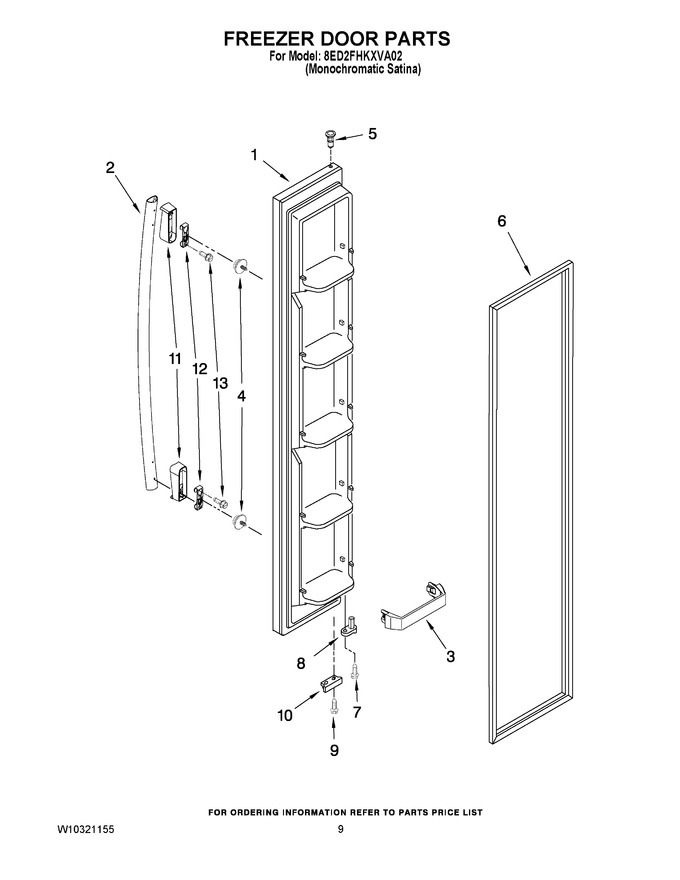

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2309925LA | Freezer Door (includes Item No.8) (mono Satina) |
|
- | |||||
| 2 | WPW10257118K | Handle, Center (Replaces: W10257118) |
|
$ 196.99 | |||||
| 3 | WP2309717 | Trim, Shelf (Replaces: 2309717) |
|
$ 58.64 | |||||
| 4 | WPW10288153 | Stud, Handle (Replaces: W10129563) |
|
Immediately | $ 9.65 | ||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 6 | W10136733 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2327162) |
|
$ 358.98 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 8 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 7.20 | ||||
| 9 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 10 | W10185566 | Bracket, Door Stop |
|
- | |||||
| 11 | W10127772 | Endcap, Handle |
|
$ 49.75 | |||||
| 12 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 13 | W10267047 | Screw (Replaces: W10201588) |
|
$ 13.47 |
