SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts

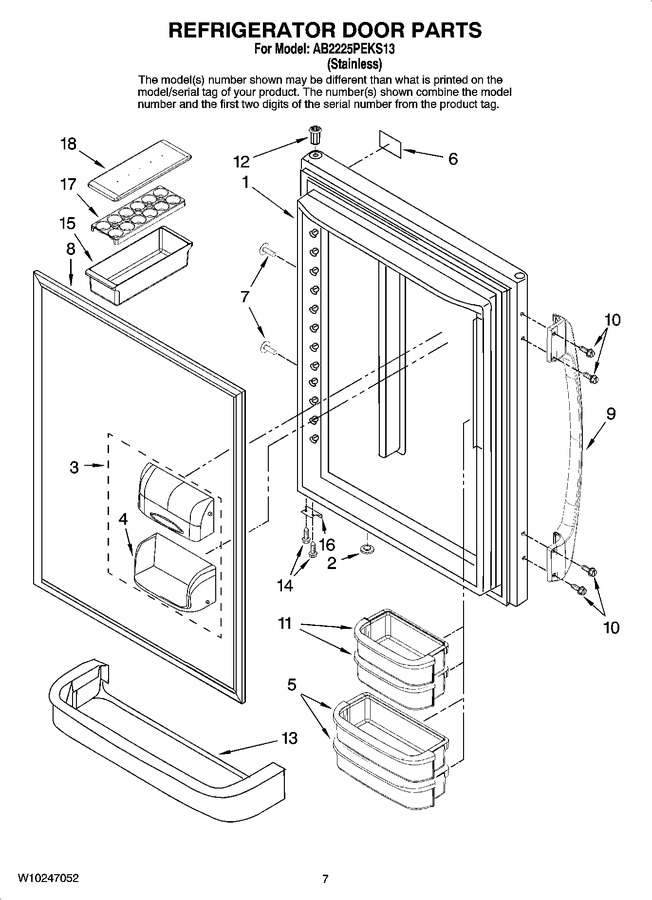

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023841SQ		Refrigerator Door (w/ Insulation) (stainless)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 10.09
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	WPW10324005		Bucket (2) (medium)   (Replaces: 67003766)				$ 69.98
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 56.47
7	12991101		Screw, Handle (black)   (Replaces: 67006408)				$ 12.12
8	WPW10436248		Gasket, Door Magnetic (black)   (Replaces: W10131327)				$ 301.64
9	12846104S		Handle, Door (stainless)				$ 136.24
10	67007083		Screw		Appelez-nous	-
11	67004449		Door Bucket (2) (small)		Appelez-nous	-
12	67004978		Bushing (black)				$ 19.89
13	67001748		Retainer, Door		Appelez-nous	-
14	WP98165		Screw   (Replaces: 67006287)				$ 7.71
15	10423131		Bin, Utility				$ 31.13
16	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 13.28
17	10436506		Tray, Egg				$ 8.28
18	10436404		Lid, Utility				$ 60.85

    View Diagram in Separate Window       Print Part List
