SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts

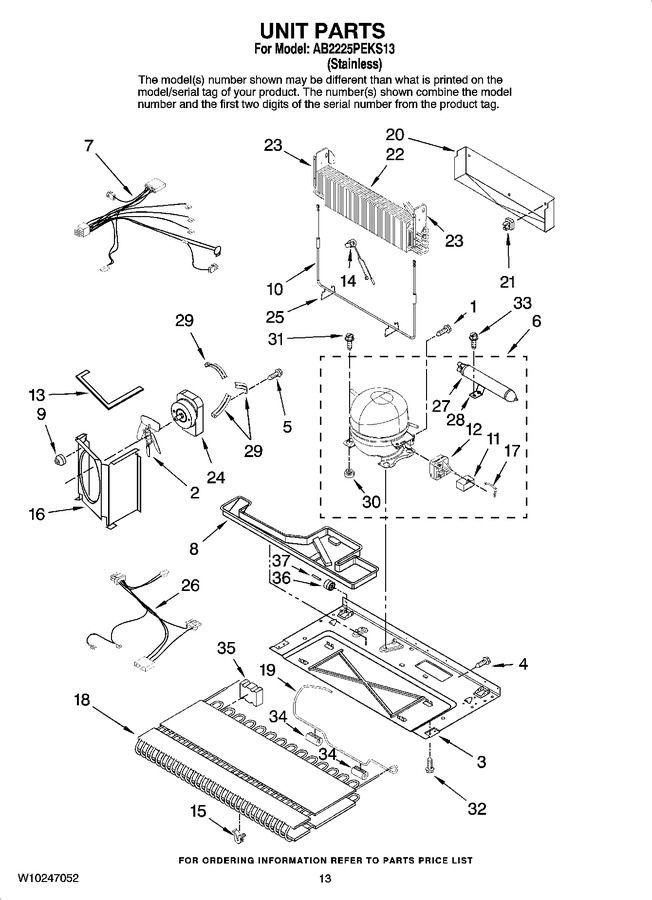

07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw (3)   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 56.52
3	67005744		Basepan		Appelez-nous	-
4	67006425		Screw			Immediately	$ 6.57
5	WP67004954		Screw (3)   (Replaces: 67004954)				$ 7.36
6	12049773		Compressor (includes 11,12, 17,27,28,&30)		Appelez-nous	-
7	W10169651		Harness, Evap. Heater		Appelez-nous	-
8	67004713		Drain Pan		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	12729119		Evaporator Heater		Appelez-nous	-
11	WP2201147		Capacitor   (Replaces: 67007162)				$ 121.88
12	2303344		Overload/relay (service)		Appelez-nous	-
12	W10848274		Overload/relay (production)   (Replaces: 67006453)				$ 167.27
13	WP854334		Gasket   (Replaces: 61003210)				$ 12.55
14	W11084905		Thermostat   (Replaces: 12639322SP)		Appelez-nous	-
15	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 7.88
16	12575308		Shroud, Condenser		Appelez-nous	-
17	67007052		Clip, Capacitor		Appelez-nous	-
18	WP67006132		Condenser   (Replaces: 67006132)				$ 287.78
19	67004262		Tube, Discharge		Appelez-nous	-
20	WPW10292802		Tray, Drip   (Replaces: 67001080)				$ 167.02
21	10623002		Clip, Evaporator				$ 10.90
22	12001919		Evaporator   (Replaces: 67003719)			Immediately	$ 369.77
23	67001083		Dam (left Side)		Appelez-nous	-
23	67001084		Dam (right Side)		Appelez-nous	-
24	WPW10246191		Motor, Fan   (Replaces: W10211284)				$ 285.65
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 133.36
26	W10169655		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 27.70
28	10547003		Clip, Drier		Appelez-nous	-
29	WP67004953		Bracket, Fan   (Replaces: 67004953)				$ 65.04
30	WPW10169124		Grommet (4)   (Replaces: 67003493)				$ 6.80
31	12846902		Screw (2)   (Replaces: 67006432)				$ 12.28
32	12992101		Screw (4)   (Replaces: 67006573)		Appelez-nous	-
33	WP33001882		Screw   (Replaces: 67006737)				$ 75.34
34	67005680		Grommet (2)				$ 19.89
35	67005491		Block, Condenser		Appelez-nous	-
36	WP67005149		Roller (2)   (Replaces: 67005149)			Immediately	$ 20.81
37	67006434		Axle, Roller (2)			Immediately	$ 7.11
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access(3/16``)			Immediately	$ 86.33
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	W10462018		Cord, Power   (Replaces: 13015202)		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04

    View Diagram in Separate Window       Print Part List
