SELECT A DIAGRAM

1 - Microwave Control Panel & Door


2 - Microwave Inclosurer


3 - Microwave Body


4 - Oven Body & Microwave Support


5 - Oven Door


6 - Door Lock

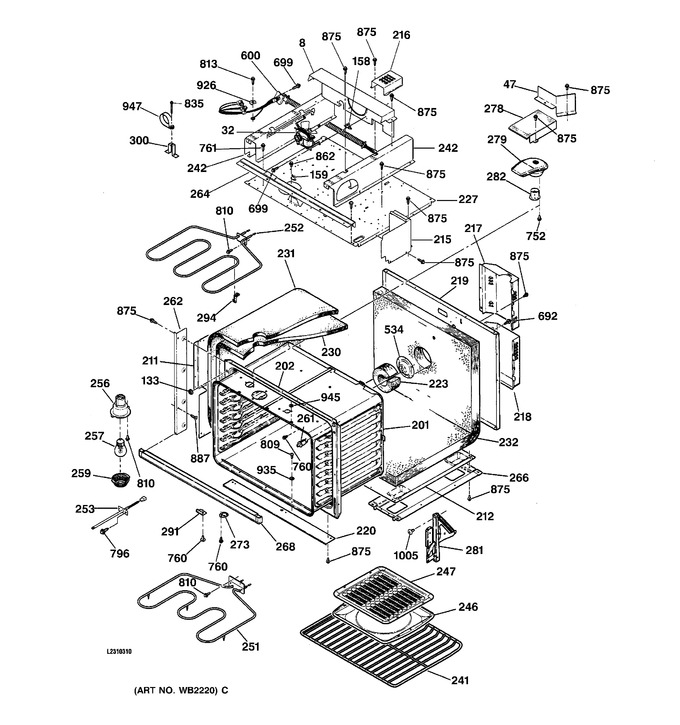

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WB02T10020		Support Fan		Appelez-nous	-
32	WG02F05326		Fan Asm   (Replaces: WB26K5061)				$ 188.08
47	WB39T10003		Air Deflector		Appelez-nous	-
47	WB34T10016		Duct Right-a(27"&30")		Appelez-nous	-
133	WG02F03972		Bumper Door   (Replaces: WB01T10022)				$ 5.72
133	WB1K5115		Felt Pad		Appelez-nous	-
133	WB01T10026		Door Pad		Appelez-nous	-
158	WB24T10033		Limit Switch		Appelez-nous	-
159	WB24K5135		Limit Switch		Appelez-nous	-
201	WB63T10057		Wrapper Ovn Cav Asm		Appelez-nous	-
202	WB63T10058		Front Frame		Appelez-nous	-
211	WB2K5306		Side Insulation Retainer		Appelez-nous	-
212	WB2K5305		Bttm Insulation Retainer		Appelez-nous	-
215	WB34T10009		Cover Wire Side		Appelez-nous	-
216	WB34K5234		Top Wire Cover		Appelez-nous	-
217	WB34K5193		Cover Wire Upr Rr		Appelez-nous	-
218	WB34K5192		Cover Wire Lwr Rr		Appelez-nous	-
219	WB2K5307		Back Insulation Retainer		Appelez-nous	-
220	WB34K5195		Shield Btm Trim		Appelez-nous	-
223	WB35K5117		Insulation Ovn Supt		Appelez-nous	-
227	WB02T10082		Retainer Insln Top		Appelez-nous	-
230	WB35K5118		Insulation Top/sds (inr)		Appelez-nous	-
231	WB35K5119		Insulation Top/sds (out)		Appelez-nous	-
232	WB35K5116		Insulation Back & Btm		Appelez-nous	-
241	WS01L11401		Oven Rack   (Replaces: WB48K5019)			Immediately	$ 71.51
242	WB2K5384		Slide Rail-rt		Appelez-nous	-
242	WB2K5385		Slide Rail-lt		Appelez-nous	-
246	WB48T10017		Broiler Pan Grid (lg)		Appelez-nous	-
246	WB49X690		Tray Cooking		Appelez-nous	-
247	WB48T10016		Broiler Pan (lg)		Appelez-nous	-
251	WG02F00437		Element Bake (3400w)   (Replaces: WB44T10018)				$ 86.71
252	WB44K5017		Broil Element		Appelez-nous	-
253	WS01F02431		Sensor-oven   (Replaces: WB23X5340)			Immediately	$ 27.18
256	WG02F01227		Oven Lamp Holder   (Replaces: WB08T10002)				$ 57.24
257	BUY LOCAL		Oven Lamp		Appelez-nous	-
257	WB08X10012		Lamp:125v25w				$ 27.50
259	WG02F05612		Oven Bulb Lens   (Replaces: WB25T10002)			Immediately	$ 25.73
261	318394803		Oven Door Light Switch   (Replaces: WB24K5031)			Immediately	$ 44.23
262	WB7K5417		Vert Side Trim-lt-blk		Appelez-nous	-
262	WB7K5416		Vert Side Trim-rt-blk		Appelez-nous	-
264	WB07T10177		Inner Vent Trim		Appelez-nous	-
266	WB63X10013		Bkt Slide-a:30"lt		Appelez-nous	-
266	WB2K5356		Base Rail		Appelez-nous	-
266	WB63X10016		Bkt Slide-b:30"rt		Appelez-nous	-
268	WB07T10037		Trim Btm (blk)		Appelez-nous	-
273	WB2K5365		Cover		Appelez-nous	-
279	WB38T10015		Vent Box Asm		Appelez-nous	-
281	WB14T10005		Hinge Asm Rt		Appelez-nous	-
281	WG02F02082		Hinge Asm Lt   (Replaces: WB14T10006)				$ 123.04
282	WB28K5010		Vent Tube		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
294	WS01A01413		Element Bro Support   (Replaces: WB2X9719)				$ 10.54
300	WB2X9896		Spacer		Appelez-nous	-
534	WB26T10003		Support Ovn Cavity		Appelez-nous	-
600	WB18K5628		Conduit Wire Harness		Appelez-nous	-
699	WB1K5150		Screw St10-16x.437hex Zn		Appelez-nous	-
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
809	WG02A00781		Screw   (Replaces: WB1X1137)				$ 14.29
810	WB1X1253		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 12.51
835	WB1X1123		Screw		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
887	WG02A00783		Trim Screw-blk   (Replaces: WB1K5173)				$ 3.57
926	WB1X1260		Ground Washer		Appelez-nous	-
935	WB1K5174		Washer		Appelez-nous	-
945	WB1K5046		Lockwasher		Appelez-nous	-
947	WB1K5043		Clip Cable Nylon		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57

    View Diagram in Separate Window       Print Part List
