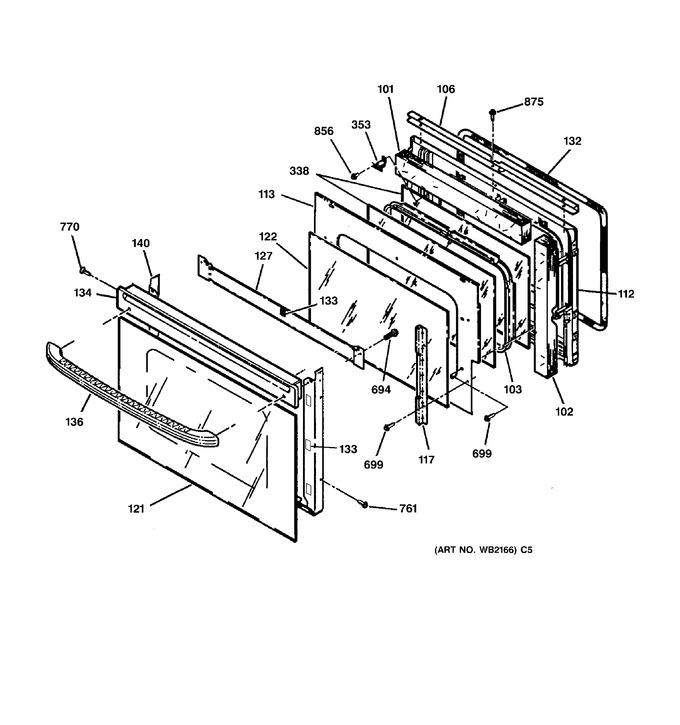

4 - Oven Body & Microwave Support


5 - Oven Door


6 - Door Lock


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35K5097		Oven Door Insulation-top		Appelez-nous	-
103	WB2K5321		Window Spacer		Appelez-nous	-
106	WB07T10036		Shield Dr Trm Asm		Appelez-nous	-
112	WB55T10017		Lining Ovn Dr Asm		Appelez-nous	-
113	WB2K5322		Insulation Retainer		Appelez-nous	-
117	WB2K5310		Oven Door Glass Retainer		Appelez-nous	-
121	WB57T10091		Glass Ovn Dr Otr (blk)		Appelez-nous	-
122	WG02F01222		Oven Door Glass-inner   (Replaces: WB57K5230)				$ 155.53
127	WB34K5197		Door Vent Shield		Appelez-nous	-
132	WB04T10008		Gasket Ovn Dr		Appelez-nous	-
133	WG02F03972		Bumper Door   (Replaces: WB01T10022)				$ 5.72
133	WB1K5115		Felt Pad		Appelez-nous	-
133	WB01T10026		Door Pad		Appelez-nous	-
134	WB07T10085		Trim Dr Vent (blk)		Appelez-nous	-
136	WB15T10040		Handle Ovn Dr		Appelez-nous	-
140	WB55T10071		Frame Ovn Dr Asm (blk)		Appelez-nous	-
338	WS01L00806		Window Pack Kit Lg   (Replaces: WB56K20)			Immediately	$ 72.07
353	WB2X8320		Window Clip		Appelez-nous	-
694	WG02A00792		Screw   (Replaces: WB1K5157)				$ 3.57
699	WB1K5150		Screw St10-16x.437hex Zn		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
770	WB01T10012		Screw 8-18 Ab Flt .375 B		Appelez-nous	-
856	WG02F04011		Screw Tc10-32x.250hexni   (Replaces: WB1X1293)				$ 3.57
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
