SELECT A DIAGRAM

1 - Microwave Control Panel


2 - Microwave Body Parts


3 - Microwave Enclosurer


4 - Microwave Door

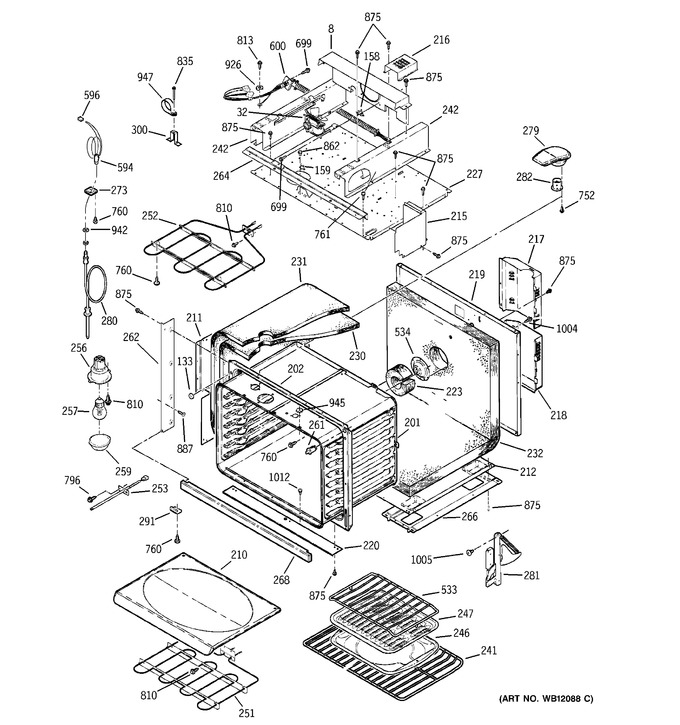

5 - Oven Body With Microwave Support


6 - Door


7 - Door Lock


8 - Convection Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WB02T10020		Fan Support		Appelez-nous	-
32	WG02F05326		Fan Asm   (Replaces: WB26K5061)				$ 188.08
133	WG02F03972		Door Bumper   (Replaces: WB01T10022)				$ 5.72
133	WG02F03973		Foam Tape-door   (Replaces: WB01T10052)				$ 3.57
133	WB02T10103		Felt Pad		Appelez-nous	-
158	WG02F00913		Limit Switch   (Replaces: WB24T10060)			Immediately	$ 12.86
159	WB24T10059		Limit Switch		Appelez-nous	-
201	WB63T10063		Oven Body-upper		Appelez-nous	-
202	WB63T10064		Front Frame		Appelez-nous	-
210	WB63T10034		False Bottom		Appelez-nous	-
211	WB2K5306		Insulation Retainer-side		Appelez-nous	-
212	WB02K10047		Insulation Retainer-btm		Appelez-nous	-
215	WB34T10009		Element Wire Cover		Appelez-nous	-
216	WB34K5234		Top Wire Cover		Appelez-nous	-
217	WB34K5193		Wire Cover Upr Rr		Appelez-nous	-
218	WB34K5192		Wire Cover Lwr Rr		Appelez-nous	-
219	WB56X10189		Insulation Retainer Back		Appelez-nous	-
220	WB34K5195		Btm Trim Shield		Appelez-nous	-
223	WB35K5117		Ov Insulation Support		Appelez-nous	-
227	WB02T10109		Insulation Retainer Top		Appelez-nous	-
230	WB35K5118		Insulation Top/sds (inr)		Appelez-nous	-
231	WB35K5119		Insulation Top/sds (out)		Appelez-nous	-
232	WB35K5116		Insulation Back & Btm		Appelez-nous	-
241	WB48K5022		Oven Rack-convx		Appelez-nous	-
242	WB2K5384		Slide Rail-rt		Appelez-nous	-
242	WB2K5385		Slide Rail-lt		Appelez-nous	-
246	WB48T10006		Broiler Pan		Appelez-nous	-
246	WB49X690		Cooking Tray		Appelez-nous	-
247	WB48T10005		Broiler Pan Grid		Appelez-nous	-
251	WB44T10021		Bake Element (2700w)		Appelez-nous	-
252	WB44K10007		Broil Unit Asm (deluxe)		Appelez-nous	-
253	WG02F01436		Sensor Asm   (Replaces: WB23T10015)			Immediately	$ 63.62
256	WG02F01227		Oven Lamp Holder   (Replaces: WB08T10002)				$ 57.24
257	BUY LOCAL		Oven Light		Appelez-nous	-
257	WB08X10012		Lamp:125v25w				$ 27.50
259	WG02F05612		Oven Bulb Lens   (Replaces: WB25T10002)			Immediately	$ 25.73
261	318394803		Oven Door Light Switch   (Replaces: WB24K5031)			Immediately	$ 44.23
262	WB7K5517		Vert Side Trim-rt-wht		Appelez-nous	-
262	WB7K5518		Vert Side Trim-lt-wht		Appelez-nous	-
264	WB07T10179		Inner Vent Trim-blk		Appelez-nous	-
266	WB63X10013		Bkt Slide-a:30"lt		Appelez-nous	-
266	WB63X10016		Bkt Slide-b:30"rt		Appelez-nous	-
266	WB02K10048		Base Rail		Appelez-nous	-
268	WB07T10038		Bottom Trim- White		Appelez-nous	-
273	WB34K5140		Pr0be Cover		Appelez-nous	-
279	WB38T10014		Vent Box Asm		Appelez-nous	-
280	WB20X5050		Probe		Appelez-nous	-
281	WG02F02082		Hinge Asm Lt   (Replaces: WB14T10006)				$ 123.04
281	WB14T10005		Hinge Asm Rt		Appelez-nous	-
282	WB28K5010		Vent Tube		Appelez-nous	-
291	WB2X9152		Cover		Appelez-nous	-
300	WB2X9896		Spacer		Appelez-nous	-
533	WB48X5108		Roast Rack		Appelez-nous	-
534	WB26T10003		Ov Cavity Support		Appelez-nous	-
594	WB08T10016		Receptacle Jack		Appelez-nous	-
596	WB8K5013		Housing Asm Receptacle		Appelez-nous	-
600	WB18K5628		Conduit Wire Harness		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
752	WG02A00488		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WB1K5200)				$ 4.20
760	WB1K5028		Screw		Appelez-nous	-
761	WB1K5029		Screw-black		Appelez-nous	-
761	WB1K5185		Screw-white		Appelez-nous	-
796	WB1K5116		Screw		Appelez-nous	-
810	WB1X1253		Screw		Appelez-nous	-
813	WS01A00445		Screw   (Replaces: WB1X1261)				$ 12.51
835	WB1X1123		Screw		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
887	WG02A00783		Trim Screw-blk   (Replaces: WB1K5173)				$ 3.57
926	WB1X1260		Ground Washer		Appelez-nous	-
942	WB1X5573		Washer		Appelez-nous	-
945	WB1K5046		Lockwasher		Appelez-nous	-
947	WB1K5043		Clip Cable Nylon		Appelez-nous	-
1004	WH2X941		Scr 8-15 A Hxw 7/8 S		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
1012	WB01T10048		Screw 10-16 Shldr Type A		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
