Diagram for 8 - Convection Fan
8 - Convection Fan


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
43 WG02F00731 Fan Blade   (Replaces: WB02T10018) In-Stock Immediately $ 32.88

298 WB44T10020 Element Convx Appelez-nous -
511 WB26X10026 Assy Cover Motor Appelez-nous -
511 WB26T10006 Fan Motor Conv. Appelez-nous -
514 WB26T10008 Fan Cover Appelez-nous -
537 WB26T10001 Fan Cover-convx Appelez-nous -
810 WB1X1253 Screw Appelez-nous -
925 WB1K5117 Washer .250idx.812od Appelez-nous -
977 WS01A01105 Nut   (Replaces: WB02T10017) In-Stock Immediately $ 8.55

1004 WH2X941 Scr 8-15 A Hxw 7/8 S Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

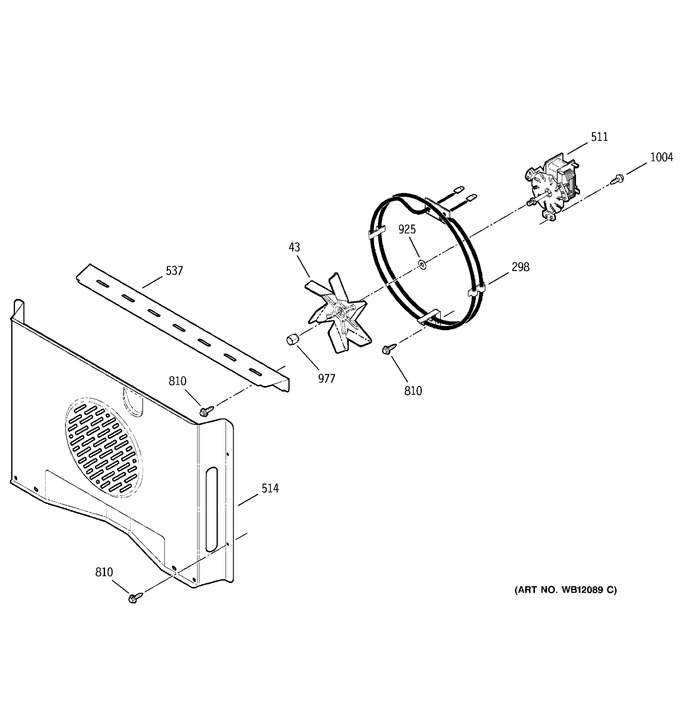

Diagram for JTP95WA4WW
