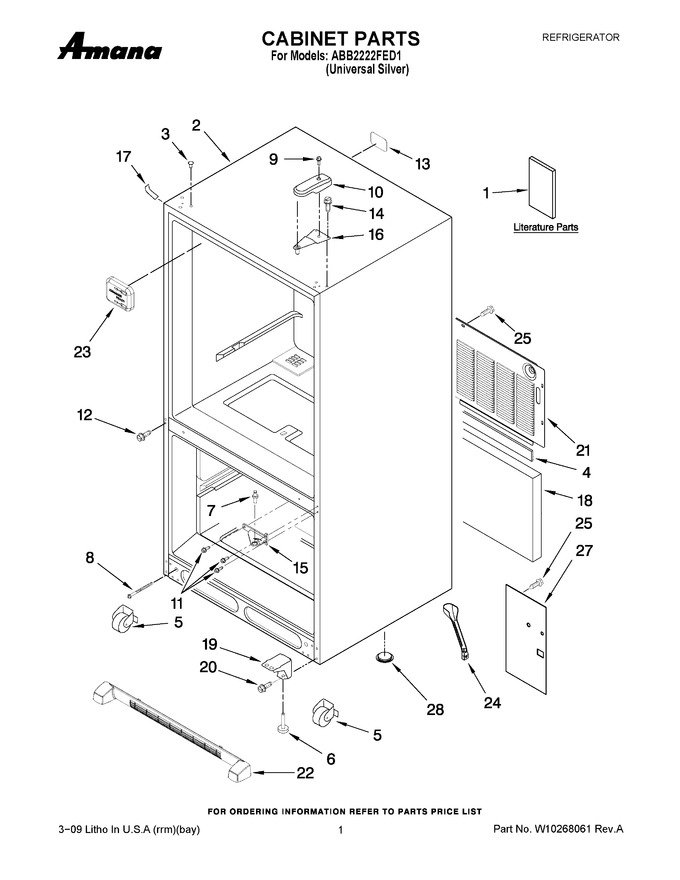

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184250		Energy Guide		Appelez-nous	-
1	W10238840		Tech Sheet		Appelez-nous	-
1	W10175445		Use & Care Guide		Appelez-nous	-
3	WP12246610		Plug, Button (3) (black)   (Replaces: 12246606)			Immediately	$ 7.34
4	B5759649		Gasket		Appelez-nous	-
5	12580304		Roller Assembly				$ 5.84
6	10354002		Foot, Brake			Immediately	$ 6.64
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 7.90
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 12606103)			Immediately	$ 6.37
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 6.80
10	67001012		Cover, Hinge (black)   (Replaces: 12477601B)				$ 44.74
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.59
12	W11573362		Screw   (Replaces: 12992201)				$ 13.25
13	W11685757		Label, Fl Tb Plug   (Replaces: 12249902)				$ 6.67
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.59
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 150.62
16	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 42.42
17	67003485		Cover, Corner (black )   (Replaces: 12587703B)			Immediately	$ 19.93
18	12820505		Pad, Acoustic				$ 71.70
19	12906303WD		Foot, Cabinet				$ 79.72
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.34
21	WPW10210979		Cover, Unit   (Replaces: W10210979)				$ 185.61
22	WPW10534162		Grille Assembly (black)   (Replaces: W10236196)				$ 133.34
23	WP67001098		Cover, Fl Tb   (Replaces: 12477501)				$ 7.59
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 41.61
25	67006425		Screw (9)   (Replaces: 12990511)			Immediately	$ 6.57
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 19.22
28	A3076901		Plug-button				$ 5.70
