Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658579DQ Refrigerator Door (w/liner) (universal Silver) Appelez-nous -
2 67006806 Screw   (Replaces: 12992803) Special Order $ 12.62

3 WP12744905 Door, Dairy   (Replaces: 12744905V) Special Order $ 102.59

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 WP67001021 Bucket, Medium (4)   (Replaces: 12557204) Special Order $ 76.46

6 12991105 Screw,handle Hole (black) Appelez-nous -
8 WPW10436248 Door Gasket, Magnetic (black)   (Replaces: W10164035) Special Order $ 301.64

9 12845806B Door Handle (black) Appelez-nous -
10 Y12528501 Nameplate   (Replaces: 12528501) In-Stock Immediately $ 56.47

11 67001019 Retainer, Ref Door   (Replaces: 12557905) In-Stock Immediately $ 101.61

12 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

13 67004978 Bushing (black)   (Replaces: 10961006B) Special Order $ 19.89

14 W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 13.28

15 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 81.29


    View Diagram in Separate Window     Print Icon   Print Part List

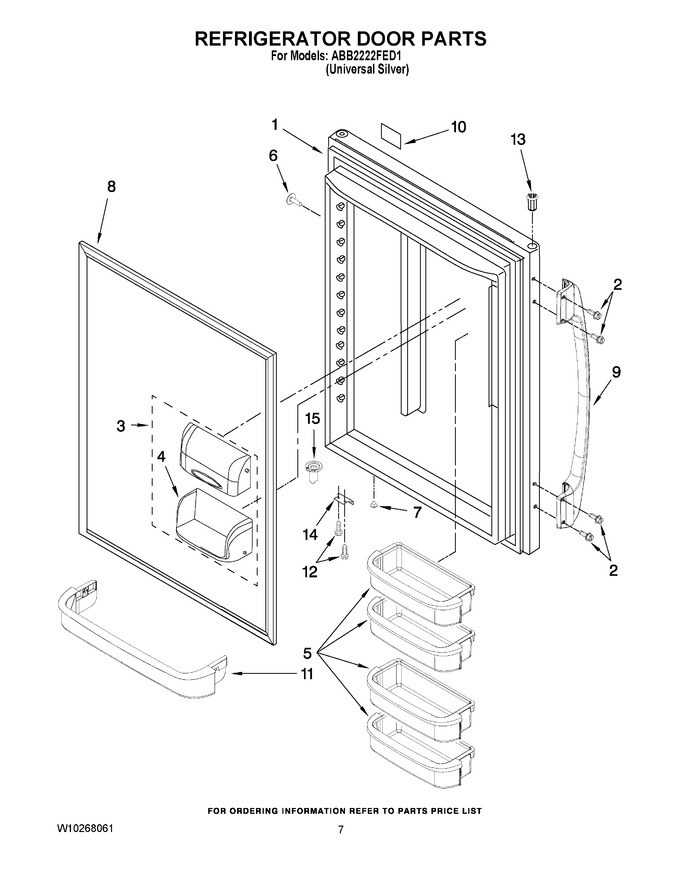

Diagram for ABB2222FED1
