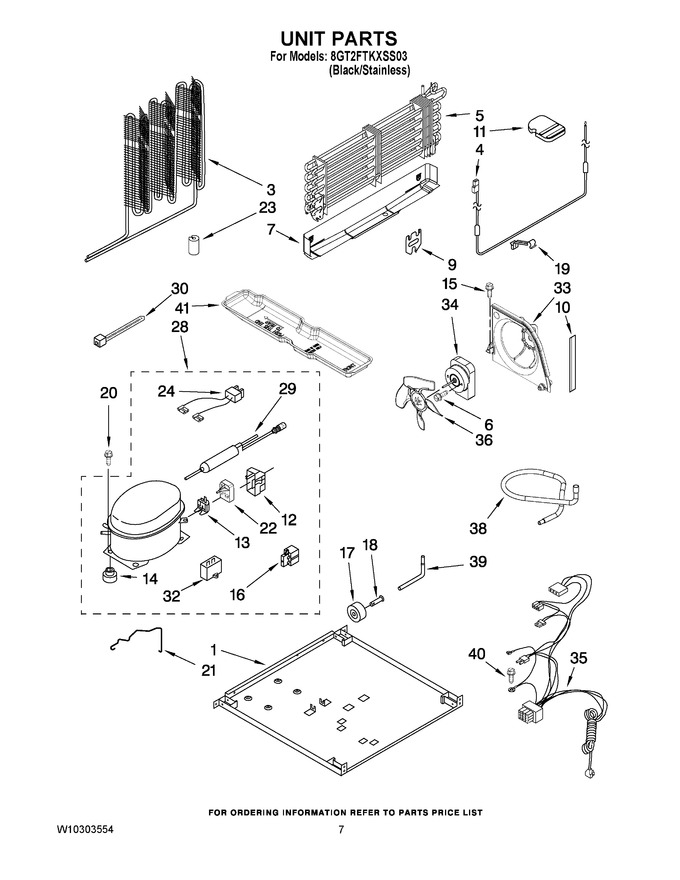

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320187		Plate, Unit Mounting		Appelez-nous	-
3	W10159808		Condenser		Appelez-nous	-
4	WPW10140847		Heater, Defrost   (Replaces: W10140847)				$ 150.61
5	2254249		Evaporator Assy				$ 239.15
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254295		Drain Pan				$ 74.91
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2201185		Support Block				$ 8.21
12	WP2162358		Cover   (Replaces: 4387731)				$ 85.76
13	WP2214067		Overload (service)   (Replaces: 4390624)				$ 124.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
15	3400518		Screw				$ 12.27
16	2183454		Relay (service Only)		Appelez-nous	-
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 17.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw, Compressor   (Replaces: 489373)				$ 7.01
21	2212996		Strap   (Replaces: 2255113)				$ 11.45
22	WP2225929		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2225929)			Immediately	$ 120.97
23	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 7.28
24	WP2172890		Wire Assembly (service Only)   (Replaces: 4387765)				$ 7.66
28	W10285060		Compressor (includes Items 12,13,14,16,24, 29 & 32)   (Replaces: W10175729)				$ 664.70
29	WPW10143759		Drier (service)   (Replaces: W10177049)			Immediately	$ 27.70
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.47
32	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 52.97
32	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 52.97
33	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 79.19
34	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
35	2187807		Wire Assembly Unit		Appelez-nous	-
36	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 22.67
38	2225237		Tube, Suction				$ 40.12
39	2154109		Tube, Process				$ 68.63
40	WP489128		Screw   (Replaces: 488500)				$ 10.26
41	WP2254574		Evaporator Tray   (Replaces: 2254574)				$ 165.23
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access(3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (4.00 Ozs. (r134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04

    View Diagram in Separate Window       Print Part List
