View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

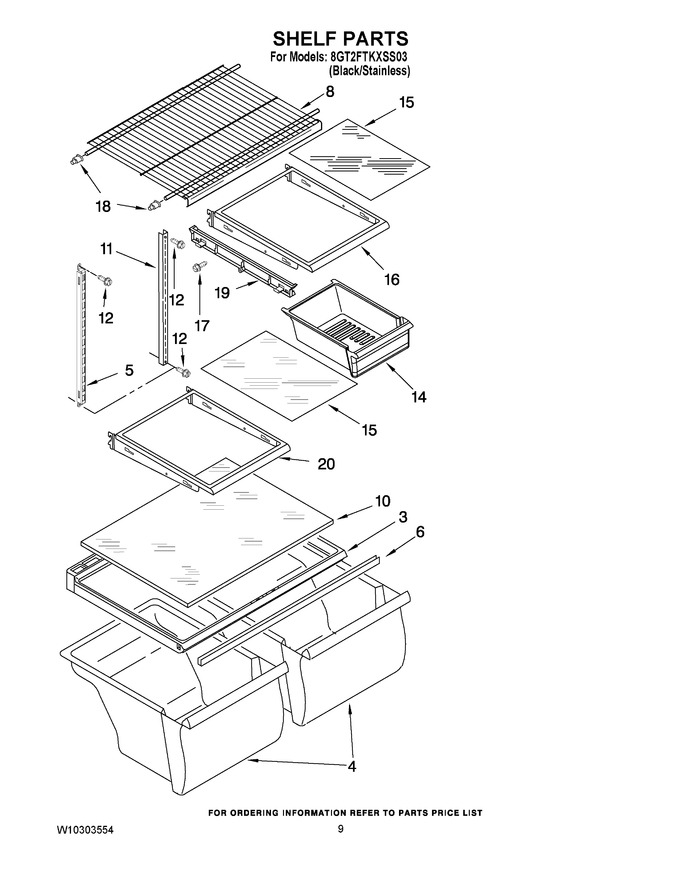

05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WP2314549 | Cover, Crisper (Replaces: 2314500) |
|
$ 251.19 | |||||
| 4 | W10854037 | Crisper Pan (Replaces: 2218124) |
|
Immediately | $ 161.27 | ||||
| 5 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 6 | WP2172748 | Support, Crisper Cover (Replaces: 2314478) |
|
$ 91.87 | |||||
| 8 | 2189454 | Shelf |
|
- | |||||
| 10 | WP2176225 | Glass, Crisper Cover (Replaces: 2210573) |
|
$ 237.97 | |||||
| 11 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 14 | WP2218132K | Meat Pan (Replaces: 2218132K) |
|
Immediately | $ 154.29 | ||||
| 15 | 2214913 | Glass, Half Shelf Cantilever |
|
- | |||||
| 16 | 2214911 | Pan, Shelf Cantilever |
|
$ 116.35 | |||||
| 17 | WP3400065 | Screw (Replaces: 3400065) |
|
Immediately | $ 7.36 | ||||
| 18 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 19 | 2214892 | Track, Pan Slide (2) |
|
- | |||||
| 20 | 2214909 | Pan, Shelf Cantilever |
|
- |
