SELECT A DIAGRAM

1 - Freezer Door

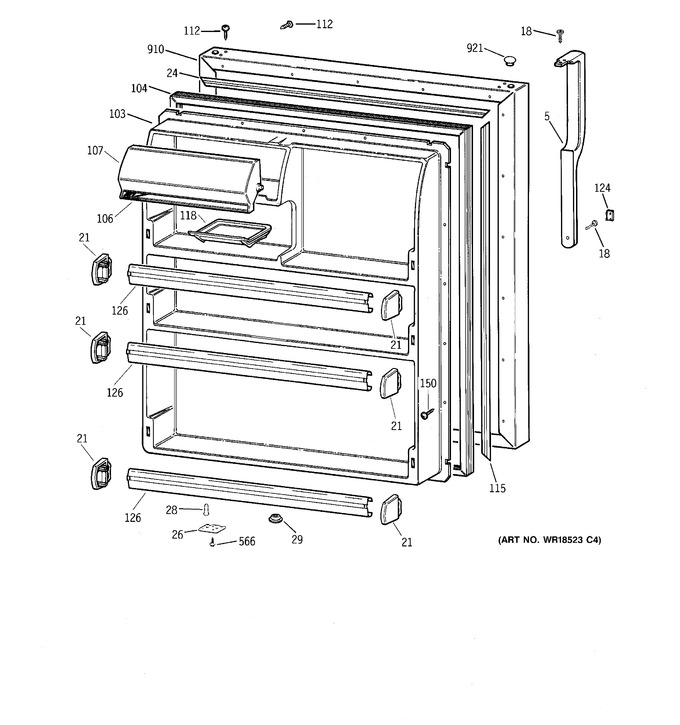

2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Separator Compartment Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR12X10425		Handle Door Asm Ff Wh		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
21	WR2X7975		Cap Shelf Front		Appelez-nous	-
24	WR17X2237		Retainer Strip H		Appelez-nous	-
26	WR2X9009		Stop Door		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
103	WR77X602		Door Inner Ff		Appelez-nous	-
104	WR24X446		Gasket Door Ff Wh		Appelez-nous	-
106	WR38X2161		Trim Bright		Appelez-nous	-
107	WR22X518		Door Utility		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
115	WR17X2238		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10129		Plug Button Handle Wh		Appelez-nous	-
126	WR71X2617		Front Shelf Ff Full		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X8736		Door Outer Ff Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-
