SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet
4 - Shelves

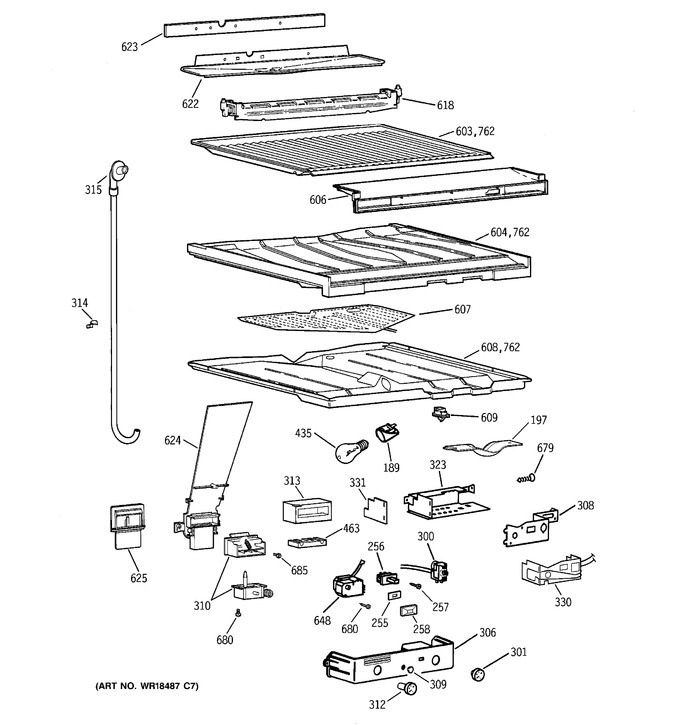

5 - Separator Compartment Parts
6 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 189 | WR2X9014 | Socket Term Asm |
|
- | |||||
| 197 | WR2X9013 | Shield Light Ff |
|
- | |||||
| 255 | WR2X9152 | Cover Switch |
|
- | |||||
| 256 | WR23X408 | Switch Power Saver |
|
- | |||||
| 257 | WR1X1762 | Scr 6-32 Ma Hxw 3/8 |
|
- | |||||
| 258 | WR2X9369 | Topper Switch |
|
- | |||||
| 300 | WR09X10004 | Control Temp |
|
- | |||||
| 300 | WR02X10031 | Sleeve Vinyl |
|
- | |||||
| 301 | WR02X10030 | Knob Temp Cont |
|
- | |||||
| 306 | WR17X10632 | Hsg Cont & Label Asm |
|
- | |||||
| 308 | WR2X7768 | Bracket Control Hsg |
|
- | |||||
| 309 | WR2X7652 | Plug Button |
|
- | |||||
| 310 | WR09X10023 | Damper Control Asm |
|
- | |||||
| 312 | WR02X10029 | Knob Control Ff |
|
- | |||||
| 313 | WR82X10014 | Damper Insulation |
|
- | |||||
| 314 | WR2X8503 | Clamp Tube |
|
- | |||||
| 315 | WR02X10134 | Tube Drain Asm |
|
- | |||||
| 323 | WR2X7767 | Brkt Control Back |
|
- | |||||
| 330 | WR51X10037 | Heater Asm |
|
- | |||||
| 331 | WR02X10463 | Insulation Barrier |
|
- | |||||
| 435 | WR23X442 | Lamp 40w 240 V |
|
- | |||||
| 463 | WR82X338 | Insulation Bellows |
|
- | |||||
| 603 | WR17X2234 | Liner Bottom Fz |
|
- | |||||
| 604 | WR17X3495 | Insul Divider |
|
- | |||||
| 606 | WR17X2401 | Front Liner Fz |
|
- | |||||
| 607 | WR51X10008 | Heater Insul Asm Ff |
|
- | |||||
| 608 | WR17X10029 | Liner Top Ff |
|
- | |||||
| 609 | WG03F09086 | Switchlight (Replaces: WR23X10143) |
|
Immediately | $ 10.01 | ||||
| 618 | WR51X10005 | Heater & Brkt Defrost |
|
- | |||||
| 622 | WR17X2243 | Trough Drain |
|
- | |||||
| 623 | WR14X348 | Gasket Trough |
|
- | |||||
| 624 | WR14X10002 | Seal Ff Supply |
|
- | |||||
| 624 | WR17X10063 | Cover Ff Supply 18 |
|
- | |||||
| 625 | WR17X4057 | Cover Duct Asm Rh |
|
- | |||||
| 625 | WR17X4056 | Cover Duct Asm Lh |
|
- | |||||
| 648 | WR09X10003 | Cont Defrost |
|
- | |||||
| 679 | WZ06X0133 | Screw Brkt. Evap. Fan |
|
- | |||||
| 680 | WR01X10123 | Scr 6-19 Hi/lo Hxw 1/2 S |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- |
