SELECT A DIAGRAM

1 - Freezer Door

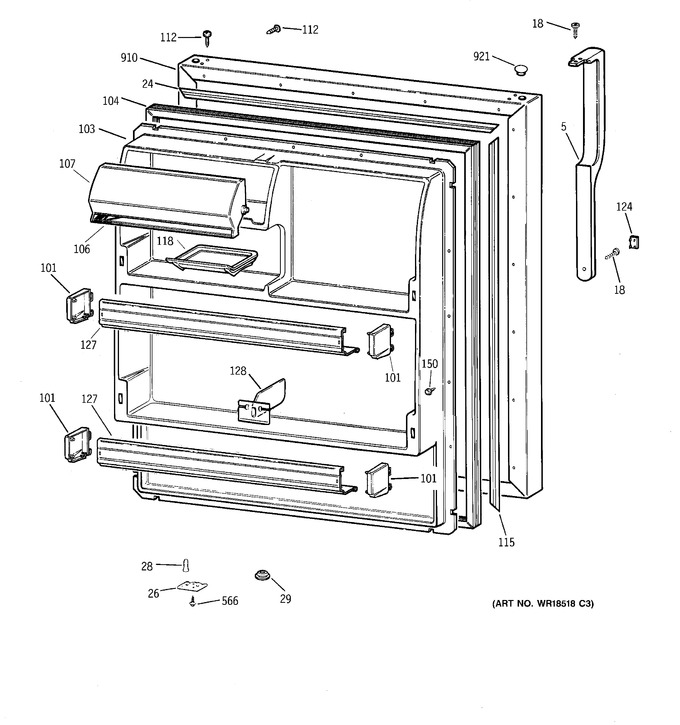

2 - Fresh Food Door


3 - Cabinet


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR12X10135		Handle Door Asm Ff Bk		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
24	WR17X2279		Retainer Strip H		Appelez-nous	-
26	WR2X7628		Door Stop		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8542		Plug Button Insert Bk		Appelez-nous	-
101	WG03F00926		Cap Shelf Front R.h.   (Replaces: WR2X9296)				$ 12.36
101	WG03L00278		End Cap - L.h. (wide)   (Replaces: WR2X9295)				$ 27.16
103	WR77X609		Door Inner Ff		Appelez-nous	-
104	WR24X540		Gasket Door Ff Bk		Appelez-nous	-
106	WR38X10114		Trim Bright		Appelez-nous	-
107	WR22X518		Door Utility		Appelez-nous	-
112	WR01A00518		Beauty Button (black)   (Replaces: WR2X8701)				$ 4.20
115	WR17X2280		Retainer Strip V		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10136		Plug Button Handle Bk		Appelez-nous	-
127	WR71X10093		Shelf Front Ff		Appelez-nous	-
128	WR2X9297		Divider Shelf		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
910	WR78X10085		Door Outer Ff Bk		Appelez-nous	-
921	WR2X8541		Plug Button Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
