New Model Search:

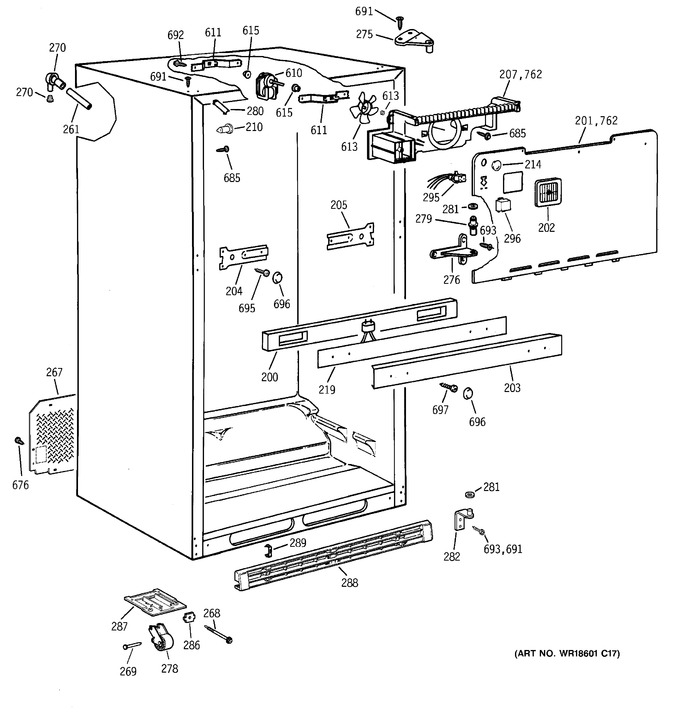

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WR14X356 | Foam Strip Mullion |
|
- | |||||
| 201 | WR17X2269 | Cover Evap Asm |
|
- | |||||
| 202 | WR2X8629 | Grille Ice Serv Snap-in |
|
- | |||||
| 203 | WR17X4201 | Mullion Crosspiece Bk |
|
- | |||||
| 204 | WR2X7823 | Bracket Mullion Lh |
|
- | |||||
| 205 | WR2X7822 | Bracket Mullion Rh |
|
- | |||||
| 207 | WR17X2990 | Plenum |
|
- | |||||
| 210 | WR2X6261 | Grommet Shelf Fz |
|
- | |||||
| 214 | WR2X7148 | Plug Button |
|
- | |||||
| 219 | WR51X358 | Heater Mullion |
|
- | |||||
| 261 | WR2X6087 | Tube Water Fill |
|
- | |||||
| 267 | WR82X10044 | Cover Access Asm |
|
- | |||||
| 268 | WR1X1816 | Screw Mobility |
|
- | |||||
| 269 | WR1X1803 | Key Pivot |
|
- | |||||
| 270 | WR2X9153 | Grommet Water Fill |
|
- | |||||
| 270 | WG03L01693 | Plug Button (Replaces: WR2X8247) |
|
$ 4.20 | |||||
| 275 | WR13X10003 | Hinge Top Paint Asm Bk |
|
- | |||||
| 276 | WR13X726 | Hinge Center Asm Bk |
|
- | |||||
| 278 | WR2X8842 | Mobility Front Asm |
|
- | |||||
| 279 | WR13X587 | Pin Hinge Ctr |
|
- | |||||
| 280 | WR2X8539 | Cap Corner O.c. Bk |
|
- | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.57 | ||||
| 282 | WR13X651 | Hinge Btm Asm Bk |
|
- | |||||
| 286 | WR1X1815 | Leveling Nut |
|
- | |||||
| 287 | WR2X9168 | Gusset |
|
- | |||||
| 288 | WR74X203 | Grille Base Asm Bk |
|
- | |||||
| 289 | WR2X7646 | Clip Base Grille |
|
- | |||||
| 295 | WR23X315 | Receptacle Icemaker |
|
- | |||||
| 296 | WR2X8444 | Cover Plug I M |
|
- | |||||
| 610 | GEFM | Motor Evap Fan (Replaces: WR60X190) |
|
Immediately | $ 106.65 | ||||
| 611 | WR2X7664 | Bracket Evap Fan |
|
- | |||||
| 613 | WR2X3198 | Ring Compression |
|
- | |||||
| 613 | WR60X123 | Blade Evap Fan |
|
- | |||||
| 615 | WR2X7391 | Grommet Evap Fan |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Abh Ws 1/2s |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 691 | WR1X1821 | Screw 12-24 Bk |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 693 | WR1X1822 | Screw 12-24 Bk |
|
- | |||||
| 695 | WR01X10060 | Scr 12-24tt Bht .700 Sc |
|
- | |||||
| 696 | WR02X10171 | Cover Screw Bk |
|
- | |||||
| 697 | WR01X10062 | Scr 12-24tt Bht .900(bk) |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- |
