SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional

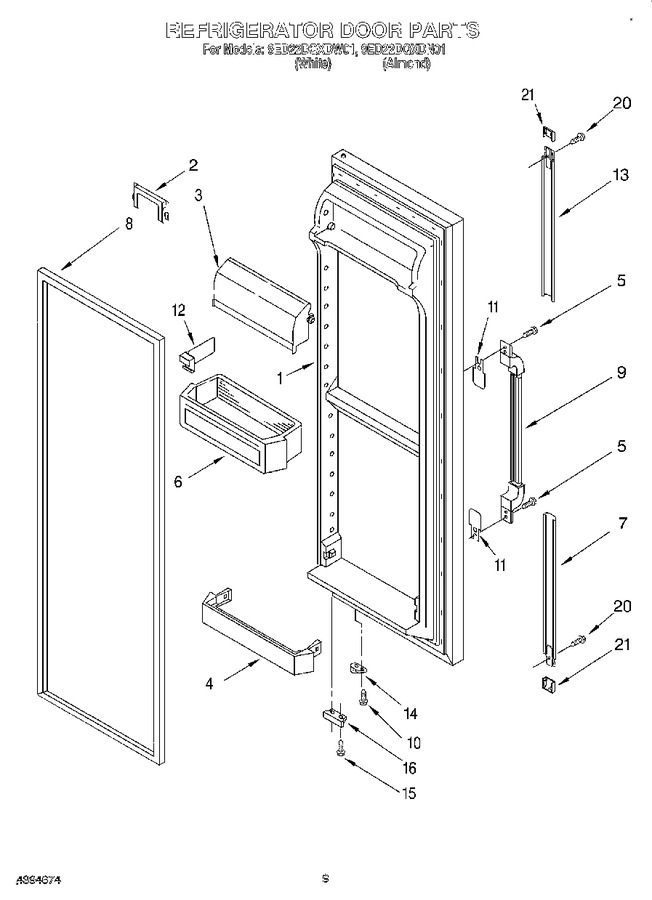

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194275W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	2194275N		Refrigerator Door (includes Item No.8) (almond)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 78.61
5	WP489463		Screw   (Replaces: 489463)				$ 8.25
6	WPW10321304		Shelf Bin (3)   (Replaces: 2179607)			Immediately	$ 44.95
7	2194766W		Extension, Bottom (white)		Appelez-nous	-
7	2194766N		Extension, Bottom (almond)		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (service)				$ 333.19
9	2194759N		Handle, Center (almond)		Appelez-nous	-
9	2194759W		Handle, Center (white)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2179399		Shim		Appelez-nous	-
12	2195496		Divider, Bin		Appelez-nous	-
13	2194764N		Extension, Top (almond)		Appelez-nous	-
13	2194764W		Extension, Top (white)		Appelez-nous	-
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
15	WP999367		Screw   (Replaces: 489367)				$ 8.56
16	2195950		Bracket, Door Stop				$ 5.84
20	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
21	2174007		Cover, End Cap (almond)		Appelez-nous	-
21	2174006		Cover, Endcap (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
