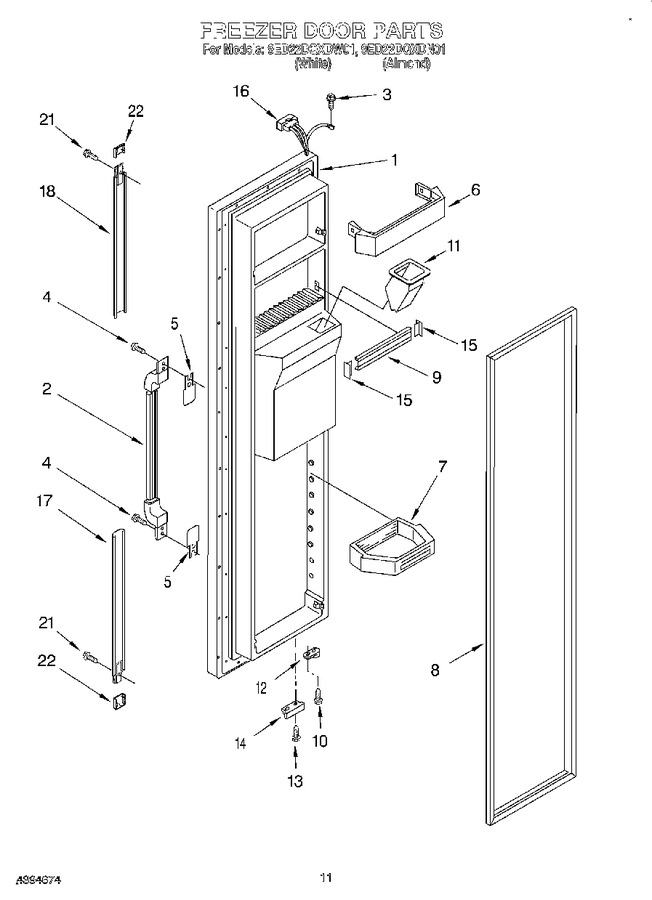

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194783W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2194783N		Freezer Door (includes Item No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
2	2194759W		Handle, Center (white)		Appelez-nous	-
2	2194759N		Handle, Center (almond)		Appelez-nous	-
3	WP488234		Screw   (Replaces: 489422)				$ 7.08
4	WP489463		Screw   (Replaces: 489463)				$ 8.25
5	2179399		Shim, End Cap (2)		Appelez-nous	-
6	WP2156021		Trivet, Shelf (2)   (Replaces: 2156021)				$ 66.43
7	2179578		Shelf Bin (2)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 24.27
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 29.74
13	WP999367		Screw   (Replaces: 489367)				$ 8.56
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
16	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
17	2194766N		Extension, Bottom (almond)		Appelez-nous	-
17	2194766W		Extension, Bottom (white)		Appelez-nous	-
18	2194764N		Extension, Top (almond)		Appelez-nous	-
18	2194764W		Extension, Top (white)		Appelez-nous	-
21	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
22	2174007		Cover, End Cap (almond)		Appelez-nous	-
22	2174006		Cover, Endcap (white)		Appelez-nous	-
