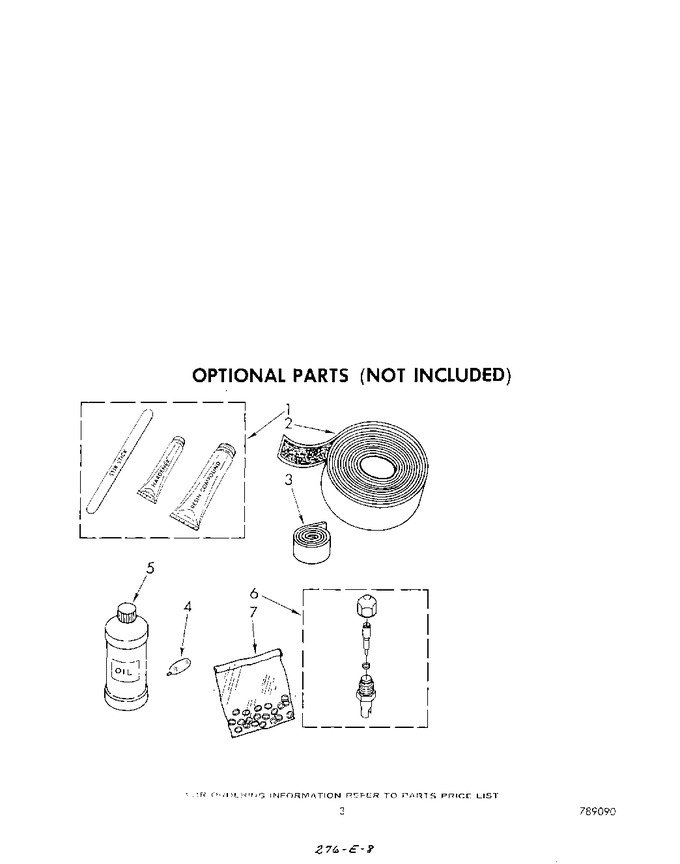

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 484310 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 2 | 505168 | Tape, No Drip 30` |
|
- | |||||
| 3 | 479502 | Tape, Vinyl 36` |
|
$ 66.77 | |||||
| 4 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 5 | 99243 | Oil, Turbine 8 Fl. Oz. |
|
- | |||||
| 6 | 978029 | Valve, Access (5/8`` Tube O.d.) |
|
$ 93.85 | |||||
| 6 | SF5538 | Valve, Access (3/8`` Tube O.d.) (Replaces: 978027) |
|
$ 16.79 | |||||
| 6 | 978028 | Valve, Access (1/2`` Tube O.d.) |
|
- | |||||
| 6 | 978030 | Valve, Access (3/4`` Tube O.d.) (Replaces: 978039) |
|
$ 123.53 | |||||
| 6 | WP978025 | Valve, Access (1/4`` Tube O.d.) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 6 | 876764 | Valve, Access (3/16`` Tube O.d.) (Replaces: 876620) |
|
Immediately | $ 86.33 | ||||
| 6 | 978026 | Valve Access (5/16`` Tube O.d.) |
|
Immediately | $ 121.04 | ||||
| 7 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- |
