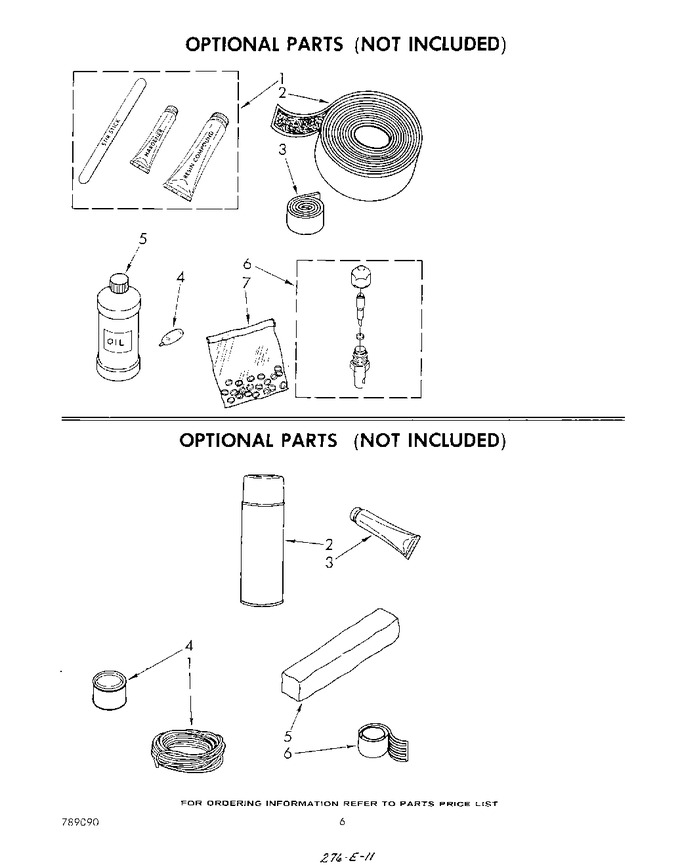

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 1 | 484310 | Epoxy, Tube (aluminum Repair) |
|
- | |||||
| 1 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 1 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 1 | 242826 | Wire, 25`` Roll (white 14 Ga.) |
|
- | |||||
| 1 | 47261 | Wire, 25`` Roll (black 12 Ga.) |
|
- | |||||
| 1 | 299885 | Wire, 25` Roll (red 12 Ga.) |
|
- | |||||
| 1 | 47263 | Wire, 25`` Roll (white 12 Ga.) |
|
- | |||||
| 2 | 505168 | Tape, No Drip 30` |
|
- | |||||
| 2 | 813684 | Adhesive, Insulation (spray 24 Oz.) |
|
- | |||||
| 3 | WP279368 | Adhesive, Insulation (2oz Tube) (Replaces: 279368) |
|
Immediately | $ 104.81 | ||||
| 3 | 479502 | Tape, Vinyl 36` |
|
$ 66.77 | |||||
| 4 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 4 | 485426 | Paint, Touch-up Starlight Gray 1/2 Pint (lacquer) |
|
- | |||||
| 5 | 99243 | Oil, Turbine 8 Fl. Oz. |
|
- | |||||
| 5 | 4318168 | Sealer, Permagum 1 Lb. Bar (Replaces: 99344) |
|
Immediately | $ 74.82 | ||||
| 6 | 876764 | Valve, Access (3/16`` Tube O.d.) (Replaces: 876620) |
|
Immediately | $ 86.33 | ||||
| 6 | 212643 | Sealer, Permagum 4 - 1` Strips |
|
Immediately | $ 86.78 | ||||
| 6 | WP978025 | Valve Access (3/4`` Tube O.d.) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 6 | 978026 | Valve Access (5/16`` Tube O.d.) |
|
Immediately | $ 121.04 | ||||
| 7 | 978865 | Seal, Ring (access Valve) (20 - Pack) |
|
- |
