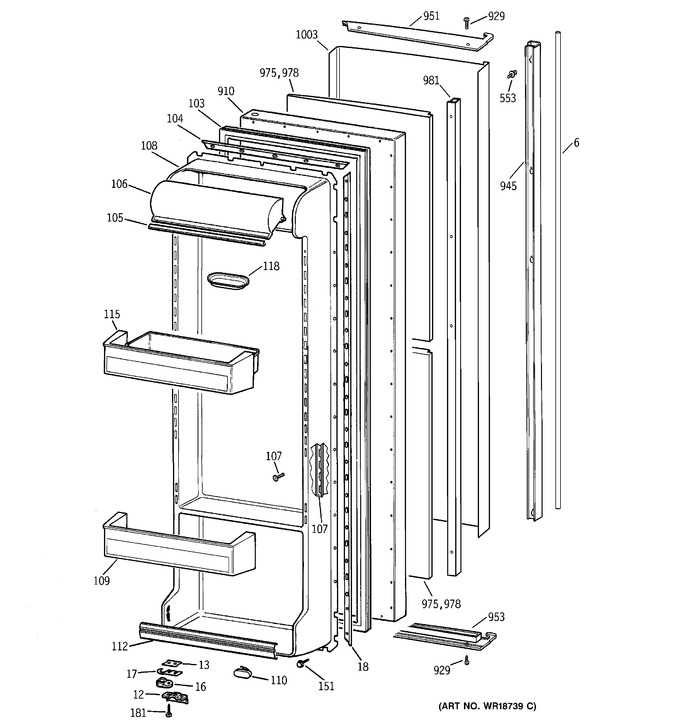

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Unit Parts


7 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10342		Handle Soft Touch Insert		Appelez-nous	-
12	WR01F03278		Stop Door Bk   (Replaces: WR2X7213)				$ 14.29
13	WG03L01596		Shim Cam Door Stop   (Replaces: WR2X7490)				$ 12.40
16	WG03F00083		Hinge Cam Riser   (Replaces: WR02X10140)				$ 11.44
17	WR2X7491		Shim Riser Cam .031		Appelez-nous	-
17	WR2X7011		Shim Hinge Btm. .062		Appelez-nous	-
17	WR2X9147		Shim Riser Cam .093		Appelez-nous	-
18	WR17X2092		Retainer Strip		Appelez-nous	-
103	WR24X532		Gasket Door Ff Bk		Appelez-nous	-
104	WR17X1168		Retainer Strip		Appelez-nous	-
105	WR38X2037		Trim Dairy Door		Appelez-nous	-
106	WR22X383		Door Dairy		Appelez-nous	-
107	WR01X10163		Scr 8-18 Ab Trt15 5/8		Appelez-nous	-
107	WR72X10036		Track Door Inner		Appelez-nous	-
108	WR77X10024		Door Inner Ff		Appelez-nous	-
109	WR71X10208		Module & Trim Asm		Appelez-nous	-
110	WR2X8989		Support Twist Bumper		Appelez-nous	-
112	WR17X10451		Front Door Shelf		Appelez-nous	-
115	WR71X10207		Module & Trim Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
181	WR01X10161		Scr 10-32 Gx Ihxw 13/16s		Appelez-nous	-
553	WR01X10150		Screw Handle Mtg		Appelez-nous	-
910	WR78X10203		Door Foam Asm Ff Bk		Appelez-nous	-
929	WR01X10151		Screw		Appelez-nous	-
945	WR12X10344		Handle Asm Ff Dr Bk		Appelez-nous	-
951	WR17X10602		Cap Top Ff Bk		Appelez-nous	-
953	WR17X10604		Cap Bottom Ff Bk		Appelez-nous	-
975	WR14X10039		Foam Asm Bowed Ff		Appelez-nous	-
978	WR14X10036		Foam Strip		Appelez-nous	-
981	WR17X10607		Tube Spacer Ff Dr		Appelez-nous	-
1003	WR99X10013		Door Outer Ff Bowed Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
