SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Fresh Food Section


5 - Fresh Food Shelves


6 - Unit Parts


7 - Icemaker Wr30x0327

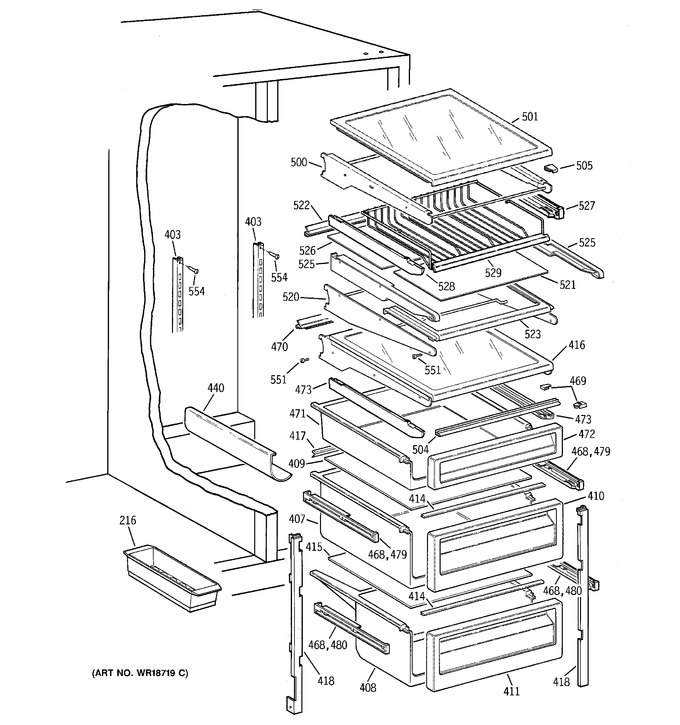

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
216	WR32X1435		Bucket Egg		Appelez-nous	-
403	WR72X254		Track Cant Shelf		Appelez-nous	-
407	WR32X1461		Pan Veg Clear Upper		Appelez-nous	-
408	WR32X10092		Pan Meat Clear Lower		Appelez-nous	-
409	WR32X1456		Cover Pan Glass		Appelez-nous	-
410	WR17X10542		Frame Asm Pan		Appelez-nous	-
411	WR17X10540		Frame Asm Pan		Appelez-nous	-
414	WR14X431		Gasket Pan Cover Frt		Appelez-nous	-
415	WR32X1457		Cover Pan Glass		Appelez-nous	-
416	WR32X10102		Shelf Cant Sp Cvr		Appelez-nous	-
417	WR17X10506		Gasket Shield Lower		Appelez-nous	-
418	WR17X10538		Trim Pan Lh		Appelez-nous	-
418	WR17X4086		Trim Pan Rh		Appelez-nous	-
440	WR17X4094		Wine Rack Pack Asm		Appelez-nous	-
468	WR1X2048		Bearing Slide Lh		Appelez-nous	-
469	WR1X2049		Bearing Slide Rh		Appelez-nous	-
470	WR1X1929		Spacer Screw		Appelez-nous	-
470	WR14X465		Gasket Pan Cvr Rear		Appelez-nous	-
471	WR32X1460		Pan Snack Clear		Appelez-nous	-
472	WR17X10541		Frame Asm Pan		Appelez-nous	-
473	WR72X282		Slide Snack Lh		Appelez-nous	-
473	WR72X283		Slide Snack Rh		Appelez-nous	-
479	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 100.56
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 78.51
480	WG03F00961		Slide Asm Lh   (Replaces: WR72X241)				$ 95.65
480	WG03F00962		Slide Asm Rh   (Replaces: WR72X242)				$ 81.27
500	WR71X2585		Shelf Cant Spillprf		Appelez-nous	-
501	WR32X10104		Shelf Encap Slide Out		Appelez-nous	-
504	WR14X474		Gasket Pan Cover Frt		Appelez-nous	-
505	WR1X2080		Stop Shelf		Appelez-nous	-
520	WR71X2247		Shelf Cant Tuckaway		Appelez-nous	-
521	WR32X10101		Shelf Glass Tuckaway		Appelez-nous	-
522	WR38X2240		Reflector Tuckaway		Appelez-nous	-
523	WR71X2494		Shelf Frame Tuckaway		Appelez-nous	-
525	WR72X220		Slide Tuckaway Rh		Appelez-nous	-
525	WR72X221		Slide Tuckaway Lh		Appelez-nous	-
526	WR32X10103		Shelf Glass Tuckaway		Appelez-nous	-
527	WR72X10038		Slide Bev Rack Rh		Appelez-nous	-
528	WR72X10039		Slide Bev Rack Lh		Appelez-nous	-
529	WR72X10040		Rack Beverage		Appelez-nous	-
551	WZ04X0244		Scr 8-18 Ab Rndw 5/8 Ss		Appelez-nous	-
554	WR1X2141		Scr 10-24 Tr Hxw I S		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
