02 - Unit
03 - Airflow And Control
04 - Cabinet
05 - Lit/optional
06 - Accessory Kit
SELECT A DIAGRAM
New Model Search:

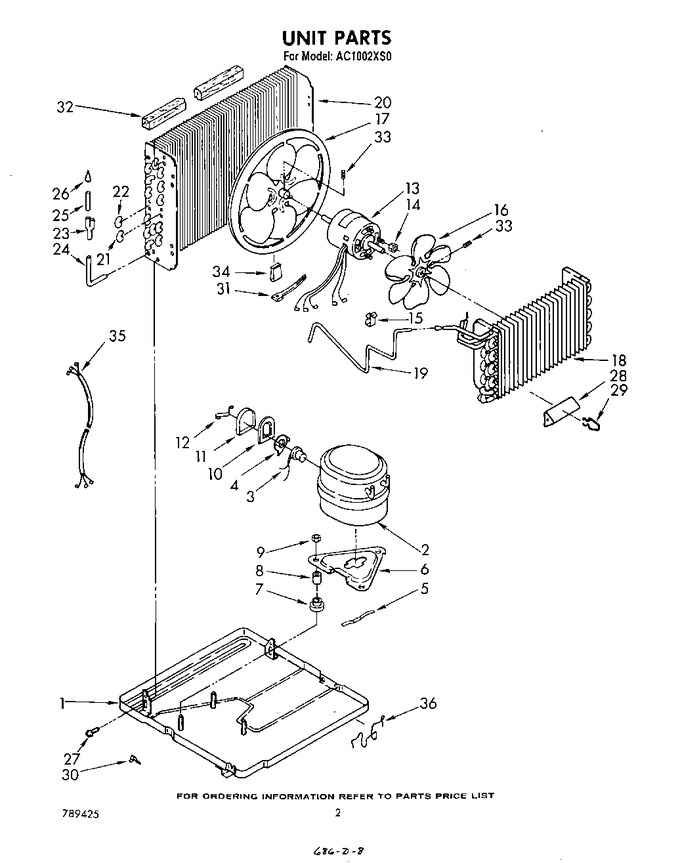

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 858949 | Base |
|
- | |||||
| 2 | 485552 | Compressor |
|
- | |||||
| 3 | 950834 | Overload |
|
- | |||||
| 4 | 994171 | Spring, Overload |
|
- | |||||
| 5 | 643179 | Spring, Compressor Mtg. |
|
- | |||||
| 6 | 644356 | Plate, Compressor Mtg. |
|
- | |||||
| 7 | 469581 | Grommet, Compressor Mtg. |
|
- | |||||
| 8 | 951094 | Sleeve, |
|
- | |||||
| 9 | 858121 | Nut, Lock (3) Compressor Mtg. |
|
- | |||||
| 10 | 647154 | Gasket, Terminal Cover |
|
- | |||||
| 11 | 647152 | Cover, Terminal |
|
- | |||||
| 12 | 643299 | Retainer, Terminal Cover |
|
- | |||||
| 13 | 1156084 | Motor |
|
- | |||||
| 14 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 15 | 852451 | Clamp, Cable |
|
- | |||||
| 16 | 998090 | Blade (evaporator) |
|
- | |||||
| 17 | 997904 | Blade, Fan (condenser) |
|
- | |||||
| 18 | 951586 | Evaporator |
|
- | |||||
| 19 | 951001 | Tube, Restrictor (length 28.0``) |
|
- | |||||
| 20 | 950933 | Condenser |
|
- | |||||
| 21 | 854624 | Bend, Return (7) |
|
- | |||||
| 22 | 855199 | Bend, Return (16) |
|
- | |||||
| 23 | 947364 | Tube, Flow Divider |
|
- | |||||
| 24 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 25 | 484230 | Tube, Outlet (includes No. 26) |
|
- | |||||
| 26 | 49599 | Strainer, Tube |
|
- | |||||
| 27 | WP489069 | Screw, Sm No.8 X 1/2a (7) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 28 | 996773 | Anticipator, Temperature |
|
- | |||||
| 29 | 475577 | Clip, Temperature Anticipator |
|
- | |||||
| 30 | 855930 | Clamp, Tube |
|
- | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 32 | 948090 | Seal, Condenser Top |
|
- | |||||
| 33 | 595085 | Setscrew, 5/16-24 X 1/4 |
|
- | |||||
| 34 | 876034 | Clip, Fan Balancing |
|
- | |||||
| 35 | 484136 | Harness, Wiring |
|
- | |||||
| 36 | 949634 | Clip, Cabinet Front Mtg (2) |
|
- | |||||
| LIT1156086 | Sheet, Tech And Wiring Daigram |
|
- | ||||||
| LIT789425 | List, Repair Parts |
|
- | ||||||
| LIT1156088 | Guide, Energy |
|
- | ||||||
| LIT950354 | Guide, Use And Care |
|
- |
