SELECT A DIAGRAM

02 - Unit


03 - Airflow And Control


04 - Cabinet


05 - Lit/optional


06 - Accessory Kit

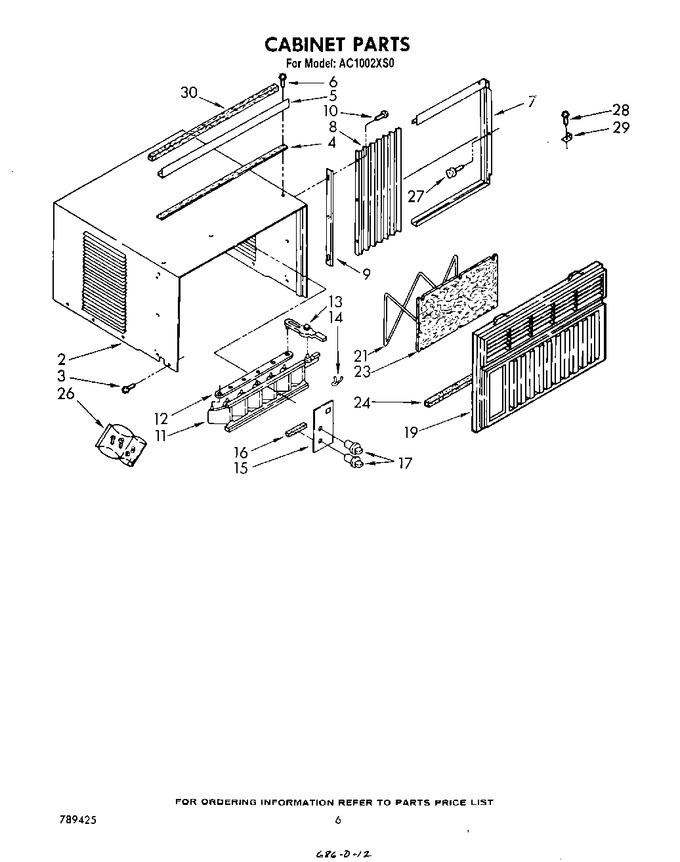

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	856040		Cabinet		Appelez-nous	-
3	WP489128		Screw, St 8-32 X 3/8 (8)   (Replaces: 488875)				$ 10.26
4	856989		Strip, Seal		Appelez-nous	-
5	993786		Channel, Top Mounting		Appelez-nous	-
6	WP308685		Screw, Sm No.10 X 1/2ab (3)   (Replaces: 488720)			Immediately	$ 7.08
7	855572		Housing, Curtain (r.s.)		Appelez-nous	-
7	855573		Housing, Curtain (l.s. (includes No.8))		Appelez-nous	-
8	947160		Curtain (2)		Appelez-nous	-
9	644224		Retainer, Curtain (2)		Appelez-nous	-
10	488730		Screw, Sm No.8 X 7/16a (6)		Appelez-nous	-
11	641481		Louver, Vertical		Appelez-nous	-
12	641482		Link, Vertical Louver		Appelez-nous	-
13	641483		Handle, Vertical Louver		Appelez-nous	-
14	641484		Spring, Detent				$ 150.14
15	952541		Plate, Escutcheon		Appelez-nous	-
16	470036		Spacer, Escutcheon Plate (2)		Appelez-nous	-
17	951156		Knob, Control (2)		Appelez-nous	-
19	950533		Front, Cabinet		Appelez-nous	-
21	646963		Retainer, Filter		Appelez-nous	-
23	951039		Filter, Air		Appelez-nous	-
24	476899		Seal, Cabinet Front ((top & Sides))		Appelez-nous	-
24	950731		Seal, Cabinet Front (middle)		Appelez-nous	-
26	476180		Bag, Accessory		Appelez-nous	-
27	475581		Screw, Thumb		Appelez-nous	-
28	488255		Screw, Round Head Wood No.8 X 3/4 (1)		Appelez-nous	-
29	644228		Bracket, Window Lock		Appelez-nous	-
30	469877		Seal, Meeting Rail		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
