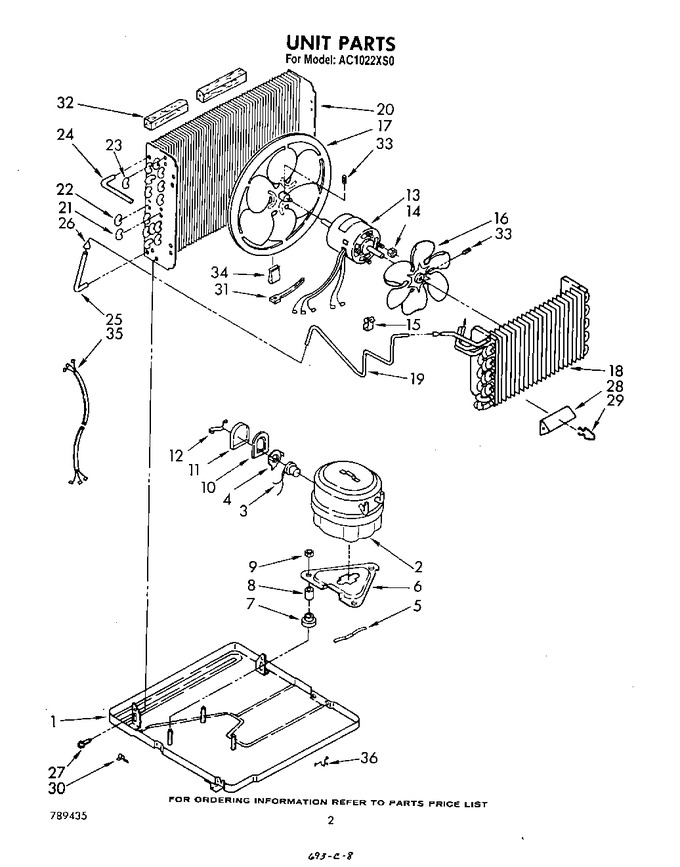

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858949		Base		Appelez-nous	-
2	484395		Compressor		Appelez-nous	-
3	WP1161170		Overload   (Replaces: 949453)				$ 84.72
4	994171		Spring, Overload		Appelez-nous	-
5	643179		Spring, Compressor Mounting		Appelez-nous	-
6	644356		Plate, Compressor Mounting		Appelez-nous	-
7	469581		Grommet, Compressor Mounting (3)		Appelez-nous	-
8	858148		Sleeve, Compressor Mounting (3)		Appelez-nous	-
9	858121		Nut, Lock (3)		Appelez-nous	-
10	647154		Gasket, Terminal Cover		Appelez-nous	-
11	647152		Cover, Terminal		Appelez-nous	-
12	643299		Retainer, Terminal Cover		Appelez-nous	-
13	948835		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
15	852451		Clamp, Cable		Appelez-nous	-
16	998090		Blade, Fan (evaporator)		Appelez-nous	-
17	998093		Blade, Fan (condenser)		Appelez-nous	-
18	949602		Evaporator		Appelez-nous	-
19	949600		Tube, Restrictor (length 49.0``)		Appelez-nous	-
20	949437		Condenser		Appelez-nous	-
21	854624		Bend, Return .765 (16)		Appelez-nous	-
22	855199		Bend, Return (10)		Appelez-nous	-
23	855457		Bend, Return		Appelez-nous	-
24	947612		Tube, 90~ Connect		Appelez-nous	-
25	484230		Tube, Strainer (includes Part No. 49599)		Appelez-nous	-
26	49599		Strainer		Appelez-nous	-
27	WP489069		Screw, Sm No.8 X 1/2a (7)   (Replaces: 488480)			Immediately	$ 7.56
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	855930		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	948090		Seal, Condenser Top		Appelez-nous	-
33	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
34	485334		Clip, Fan Balancing		Appelez-nous	-
35	484136		Harness, Wiring		Appelez-nous	-
36	949634		Clip, Cabinet Front Mtg (2)		Appelez-nous	-
