SELECT A DIAGRAM

02 - Unit


03 - Airflow And Control


04 - Cabinet


05 - Lit/optional


06 - Accessory Kit

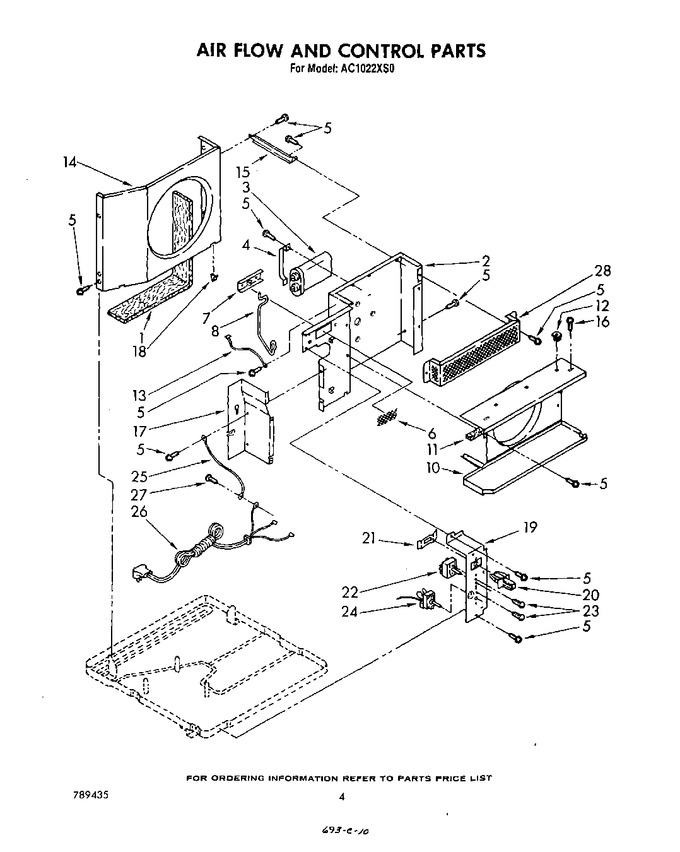

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
2	951968		Wall, Dividing		Appelez-nous	-
3	952086		Capacitor, Running		Appelez-nous	-
4	856105		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	856929		Screen, Exhaust Door		Appelez-nous	-
7	644206		Door, Exhaust		Appelez-nous	-
8	856042		Arm, Exhaust Door		Appelez-nous	-
10	948219		Shroud, Evaporator (includes Illus. 11)		Appelez-nous	-
11	948220		Insulation, Evaporator Cover		Appelez-nous	-
12	487808		Fastener, Snap		Appelez-nous	-
13	857568		Wire, Capacitor Ground		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	1155100		Support, Unit (2)		Appelez-nous	-
16	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994560		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	953066		Panel, Control		Appelez-nous	-
20	947468		Actuator, Exhaust Door		Appelez-nous	-
21	858765		Retainer, Detent Spring		Appelez-nous	-
22	950283		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	949431		Control, Tempetature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	646139		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	856912		Guard, Evaporator Impeller		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
