SELECT A DIAGRAM

02 - Unit

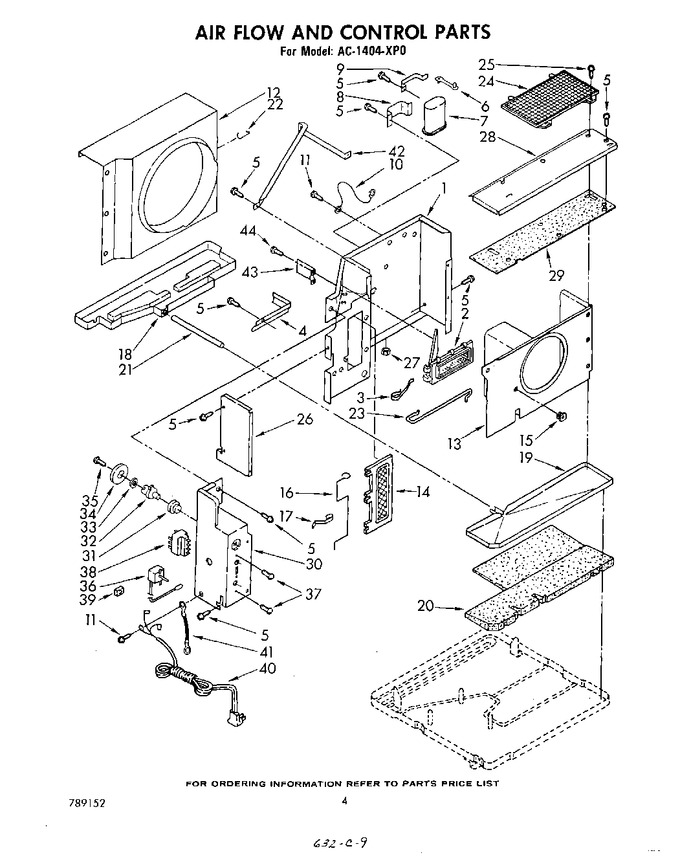

03 - Airflow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997944		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
2	649720		Door, Exhaust Air		Appelez-nous	-
3	859369		Spring, Door		Appelez-nous	-
4	852317		Channel, Wiring		Appelez-nous	-
5	488481		Screw (repair) No.10 X 3/8		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	648791		Clamp, Cable		Appelez-nous	-
7	951291		Capacitor, Run		Appelez-nous	-
8	475844		Bracket, Capacitor		Appelez-nous	-
9	852992		Bracket, Capacitor		Appelez-nous	-
10	948285		Wire, Ground		Appelez-nous	-
11	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
12	647862		Shroud, Condenser		Appelez-nous	-
13	859641		Housing, Blower Wheel		Appelez-nous	-
14	859639		Door, Fresh Air		Appelez-nous	-
15	487808		Fastener, Snap (2)		Appelez-nous	-
16	853434		Actuator, Door		Appelez-nous	-
17	649428		Spring, Door		Appelez-nous	-
18	859238		Pan, Condensate Condenser		Appelez-nous	-
19	853268		Pan, Condensate Evaporator		Appelez-nous	-
20	853269		Insulation, Pan		Appelez-nous	-
21	49181		Tube, Condensate		Appelez-nous	-
22	647873		Retainer, Shroud		Appelez-nous	-
23	859370		Wire, Control (exhaust Air)		Appelez-nous	-
23	648132		Wire, Fresh Air Control		Appelez-nous	-
24	997949		Guard, Impeller		Appelez-nous	-
25	WP488729		Screw, Sm No.8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
26	852994		Wall, Dividing L.s.		Appelez-nous	-
27	853831		Clip, Speed		Appelez-nous	-
28	856957		Cover, Evaporator		Appelez-nous	-
29	948410		Insulation, Cover		Appelez-nous	-
30	994174		Box, Control		Appelez-nous	-
31	647879		Bushing, Shaft		Appelez-nous	-
32	648130		Control, Shaft		Appelez-nous	-
33	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
34	647882		Cam, Air Control		Appelez-nous	-
35	WP98165		Screw, Sems 8-16 X 5/8   (Replaces: 489130)				$ 7.71
36	950283		Switch, Rotary		Appelez-nous	-
37	488734		Screw, Mach. 6-32 X .175 (4)		Appelez-nous	-
38	949431		Control, Tempetature		Appelez-nous	-
39	647865		Grommet, Wiring		Appelez-nous	-
40	649070		Cable, Appliance		Appelez-nous	-
41	857634		Wire, Ground		Appelez-nous	-
42	852318		Support, Unit		Appelez-nous	-
43	994399		Cover, Dividing Wall		Appelez-nous	-
44	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
44	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
44	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
44	47261		Wire, Black (25 Ft.)		Appelez-nous	-
44	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
44	47263		Wire, White (25 Ft.)		Appelez-nous	-
44	484069		Cover, Winter				$ 62.49
44	WP854334		Seal, Cabinet Back (2)   (Replaces: 858839)				$ 12.55
44	647846		Insulation, Cabinet Top (5/8`` X 13-14`` X 25-11/16``)		Appelez-nous	-
44	647847		Insulation, Cabinet R.s.		Appelez-nous	-
44	647848		Insulation, Cabinet L.s.		Appelez-nous	-
44	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
44	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
	LIT789152		List, Repair Parts		Appelez-nous	-
	LIT951393		Guide, Energy		Appelez-nous	-
	LIT951391		Sheet, Service Tech (service Information)		Appelez-nous	-
	LIT950318		Guide, Use & Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
