SELECT A DIAGRAM

02 - Unit


03 - Airflow And Control , Lit/optional


04 - Cabinet


05 - Accessory Kit

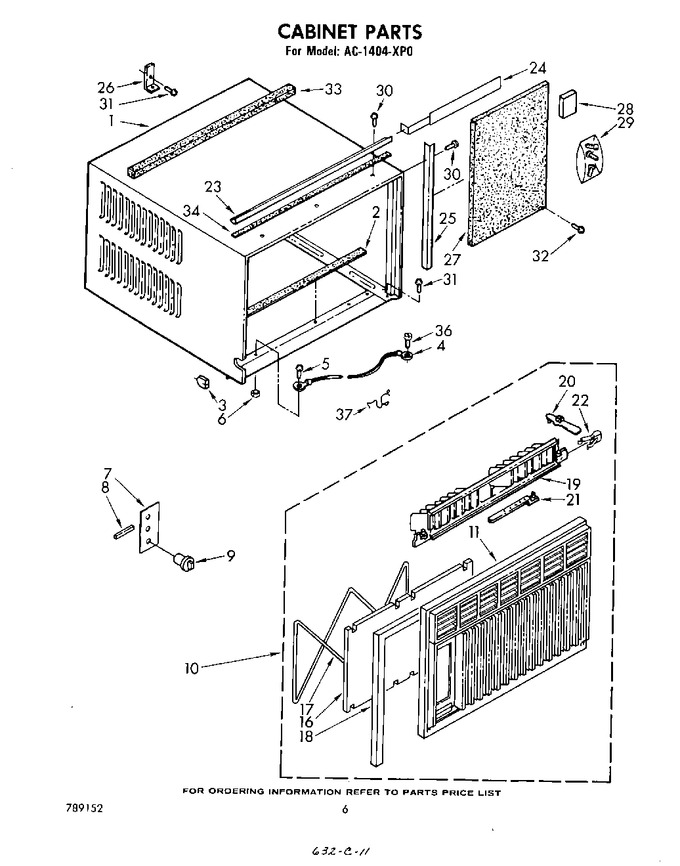

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858828		Cabinet		Appelez-nous	-
2	647854		Seal, Cabinet Bottom		Appelez-nous	-
3	647849		Grommet, Cable		Appelez-nous	-
4	857017		Wire, Ground		Appelez-nous	-
5	488853		Screw, 8-32 X 3/8		Appelez-nous	-
6	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
7	950537		Plate, Escutcheon		Appelez-nous	-
8	470036		Spacer, Plate (3)		Appelez-nous	-
9	947264		Knob, Control (3)		Appelez-nous	-
10	951140		Front Assembly, Cabinet (complete)		Appelez-nous	-
11	950538		Front, Cabinet		Appelez-nous	-
16	648008		Filter, Air		Appelez-nous	-
17	476707		Retainer, Filter		Appelez-nous	-
18	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
18	647914		Seal, Cabinet Front		Appelez-nous	-
19	647798		Louver, Vertical		Appelez-nous	-
20	644165		Handle, Louver (2)		Appelez-nous	-
21	647799		Link, Louver (2)		Appelez-nous	-
22	641484		Spring, Detent (2)				$ 150.14
23	644380		Channel, Top		Appelez-nous	-
24	645563		Bracket, L.s.		Appelez-nous	-
24	645562		Bracket, R.s.		Appelez-nous	-
25	645564		Angle, Side (2)		Appelez-nous	-
26	644228		Bracket, Window Lock		Appelez-nous	-
27	647835		Board, Filler		Appelez-nous	-
28	995274		Block, Spacer (2)		Appelez-nous	-
29	993823		Bag, Accessory		Appelez-nous	-
30	WP308685		Screw, Sm No.10 X 1/2ab   (Replaces: 488720)			Immediately	$ 7.08
31	488255		Screw Wood No.8x3/4		Appelez-nous	-
32	WP965173		Screw, Sm No.8 X 3/8a (4)   (Replaces: 488017)			Immediately	$ 10.68
33	469877		Seal, Meeting Rail		Appelez-nous	-
34	855265		Seal, Strip		Appelez-nous	-
36	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
37	949634		Clip, Cabinet Front (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
