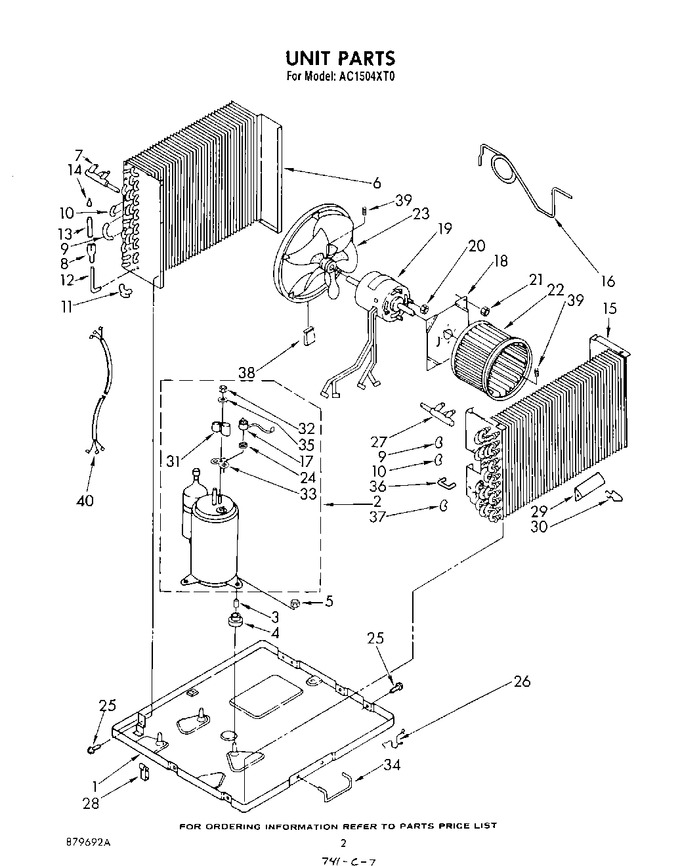

02 - Unit
03 - Airflow And Control
04 - Cabinet
05 - Installation
06 - Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 950364 | Base |
|
- | |||||
| 2 | 4210305 | Compressor |
|
- | |||||
| 3 | 950020 | Sleeve (3) |
|
- | |||||
| 4 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 5 | 858121 | Locknut (3) |
|
- | |||||
| 6 | 1156327 | Condenser |
|
- | |||||
| 7 | 1156330 | Tube, Manifold |
|
- | |||||
| 8 | 947364 | Tube, Flow Divider |
|
- | |||||
| 9 | 708532 | Bend, Return Condenser (12) Evaporator (11) |
|
- | |||||
| 10 | 708531 | Bend, Return (7) Condenser (7) Evaporator (8) |
|
- | |||||
| 11 | 1156107 | Bend, Return (3-way) |
|
- | |||||
| 12 | 1155580 | Tube, 90~ Connect |
|
- | |||||
| 13 | 484230 | Tube, Strainer Assembly (includes Illus. 14) |
|
- | |||||
| 14 | 49599 | Strainer |
|
- | |||||
| 15 | 1156570 | Evaporator |
|
- | |||||
| 16 | 1156440 | Tube, Restrictor (length 46.0``) (3) |
|
$ 6,949.23 | |||||
| 17 | WP1161170 | Overload (Replaces: 1156604) |
|
$ 84.72 | |||||
| 18 | 998024 | Plate, Fan Motor |
|
- | |||||
| 19 | 952072 | Motor, Fan |
|
- | |||||
| 20 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 21 | 858122 | Locknut (4) |
|
- | |||||
| 22 | 647618 | Wheel, Blower |
|
- | |||||
| 23 | 997226 | Blade, Fan |
|
- | |||||
| 24 | 950032 | Spring, Overload |
|
- | |||||
| 25 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 26 | 852272 | Clip, Mtg. (3) (base To Front) |
|
- | |||||
| 27 | 1156596 | Tube, Manifold |
|
- | |||||
| 28 | 642684 | Clamp, Tube |
|
- | |||||
| 29 | 472046 | Anticipator, Temperature |
|
- | |||||
| 30 | 472047 | Clip, Anticipator |
|
- | |||||
| 31 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 32 | WP950027 | Retainer, Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 33 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 34 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 35 | 950037 | Gasket, Nut |
|
- | |||||
| 36 | 1156564 | Tube, Riser |
|
- | |||||
| 37 | 1156595 | Tube, Riser |
|
- | |||||
| 38 | 876034 | Clip, Balancing |
|
- | |||||
| 39 | 595085 | Setscrew, 5/16-24 X 1/4 (2) |
|
- | |||||
| 40 | 484136 | Harness, Wiring |
|
- | |||||
| LIT1156390 | Sheet, Tech And Wiring Diagram |
|
- | ||||||
| LIT879692 | List, Repair Parts |
|
- | ||||||
| LIT1156382 | Guide, Energy |
|
- | ||||||
| LIT950335 | Guide, Use And Care |
|
- |
