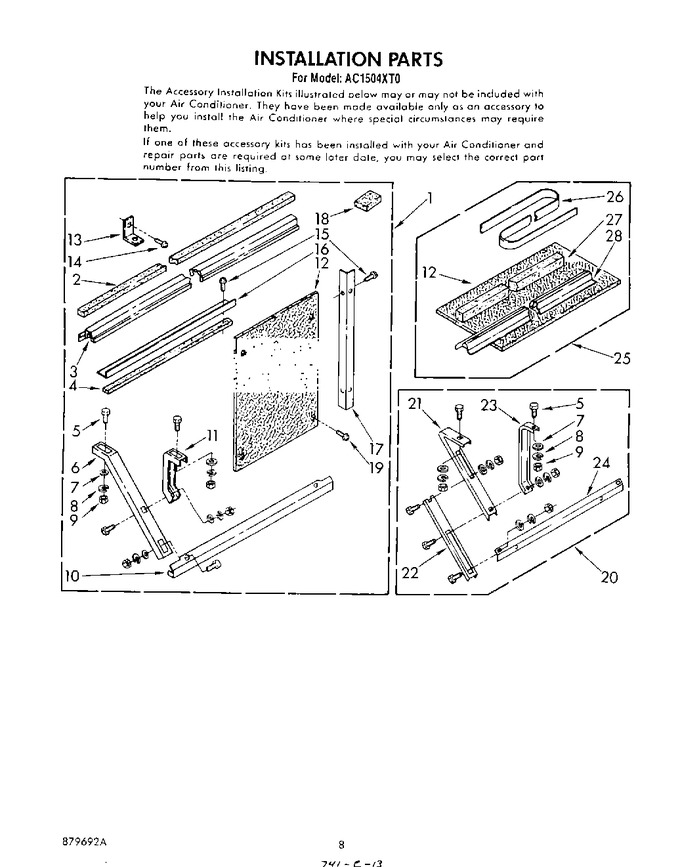

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485854		Kit, Standard Installation		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	644288		Gasket, Sash		Appelez-nous	-
4	855265		Strip, Seal		Appelez-nous	-
5	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
6	649945		Support, Cabinet (2)		Appelez-nous	-
7	488808		Washer, Flat (6)		Appelez-nous	-
8	486009		Washer, Lock (6)		Appelez-nous	-
9	486035		Nut, 1/4-20 (6)		Appelez-nous	-
10	649947		Bracket, Support		Appelez-nous	-
11	649946		Support, Retainer (2)		Appelez-nous	-
12	644303		Board, Filler		Appelez-nous	-
13	644228		Bracket, Window Lock		Appelez-nous	-
14	487371		Screw, 10 X 3/4		Appelez-nous	-
15	WP308685		Screw, 10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
16	644271		Angle, Top		Appelez-nous	-
17	644272		Angle (2)		Appelez-nous	-
18	995274		Spacer, Block		Appelez-nous	-
19	WP965173		Screw, 8 X 3/8   (Replaces: 488017)			Immediately	$ 10.68
20	485679		Kit, Outside Support		Appelez-nous	-
21	12035780		Support, Cabinet (2)   (Replaces: 644283)			Immediately	$ 345.77
22	00644284		Extension, Support (2)   (Replaces: 644284)				$ 34.20
23	644285		Retainer, Cabinet (2)		Appelez-nous	-
24	644281		Bracket, Support		Appelez-nous	-
25	485856		Kit, Wide Window		Appelez-nous	-
26	856979		Strip, Seal		Appelez-nous	-
27	470800		Seal, Meeting Rail		Appelez-nous	-
28	485457		Gasket, Sash (54``)		Appelez-nous	-
	LIT998618		Instructions, Installation (standard And Wide Window Kits)		Appelez-nous	-
	LIT485707		Instructions, Installation (outside Support Kit		Appelez-nous	-
