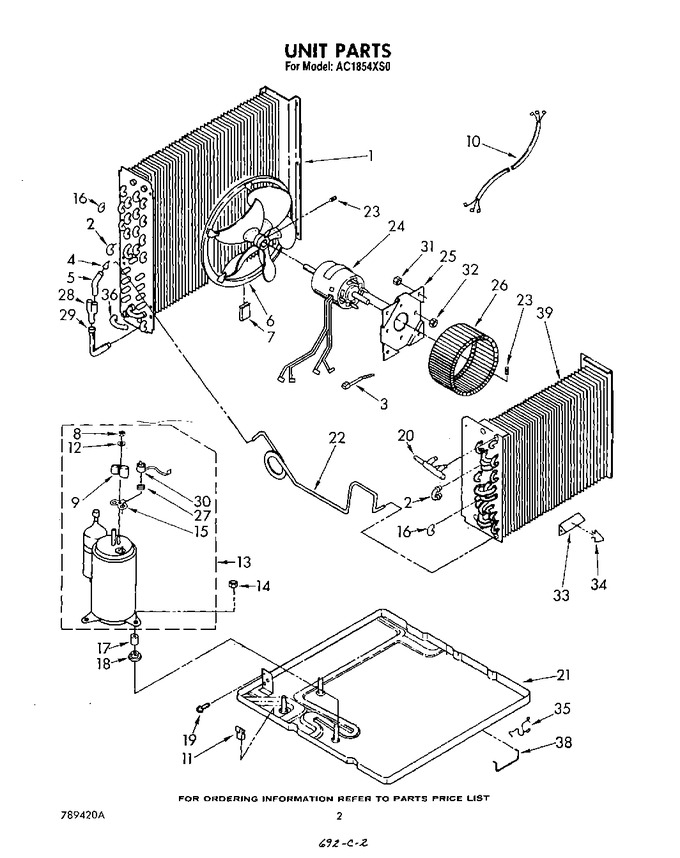

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1155490 | Condenser |
|
- | |||||
| 2 | 855199 | Bend, Return Condenser (15) Evaporator (7) |
|
- | |||||
| 3 | WPW10339879 | Tie, Cable (Replaces: 612805) |
|
$ 7.47 | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 997226 | Blade, Fan |
|
- | |||||
| 7 | 876034 | Clip, Balancing |
|
- | |||||
| 8 | WP950027 | Nut, Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 9 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 10 | 484136 | Harness, Wiring |
|
- | |||||
| 11 | 642684 | Clamp, Tube (2) |
|
- | |||||
| 12 | 950037 | Washer, Cover |
|
- | |||||
| 13 | 819230 | Compressor |
|
- | |||||
| 14 | 858121 | Locknut (4) |
|
- | |||||
| 15 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 16 | 997669 | Bend, Return Condenser (16) Evaporator (11) |
|
- | |||||
| 17 | 950020 | Sleeve (4) |
|
- | |||||
| 18 | WP950021 | Grommet (4) (Replaces: 950021) |
|
$ 78.99 | |||||
| 19 | WP488729 | Screw, S.m. No. 8 X 1/2 (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 20 | 1155510 | Tube, Maniflod Header |
|
- | |||||
| 21 | 950364 | Base |
|
- | |||||
| 22 | 1155551 | Tube, Restrictir (length 50.0``) |
|
- | |||||
| 23 | 595085 | Screw, Set 5/16 X 1/4 |
|
- | |||||
| 24 | 952072 | Motor, Fan |
|
- | |||||
| 25 | 998024 | Plate, Mounting |
|
- | |||||
| 26 | 647618 | Wheel, Blower |
|
- | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | 947364 | Tube, Flow Divider |
|
- | |||||
| 29 | 950814 | Tube, 90~ Connect |
|
- | |||||
| 30 | WP1161170 | Overload (Replaces: 1155605) |
|
$ 84.72 | |||||
| 31 | 858122 | Locknut |
|
- | |||||
| 32 | WP488130 | Nut, 8-32 (Replaces: 488130) |
|
$ 6.59 | |||||
| 33 | 996773 | Anticipator |
|
- | |||||
| 34 | 475577 | Clip |
|
- | |||||
| 35 | 852272 | Clip, Front Mtg (2) |
|
- | |||||
| 36 | 1155436 | Bend, Retrun |
|
- | |||||
| 38 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 39 | 1155434 | Evaporator (includes No.20) |
|
- |
