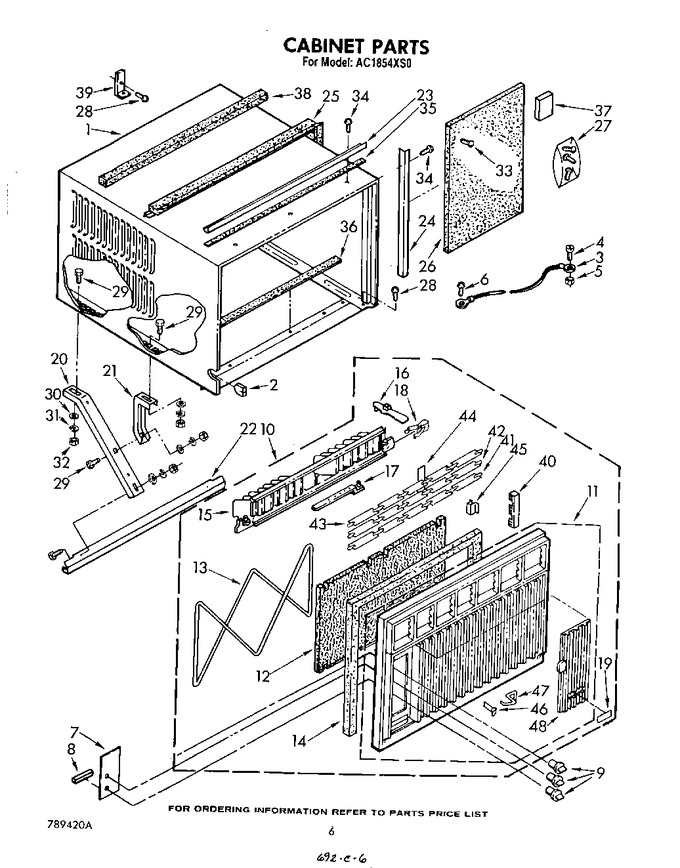

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	997280		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857022		Wire, Ground		Appelez-nous	-
4	488853		Screw, 8-32 X 3/8 (machine)		Appelez-nous	-
5	WP486255		Nut, 8-32   (Replaces: 486529)				$ 5.82
6	488854		Screw, 8-32 X 3/8 (standard)		Appelez-nous	-
7	952547		Plate, Escutcheon		Appelez-nous	-
8	469175		Spacer, Plate (3)		Appelez-nous	-
9	947264		Knob, Control (2)		Appelez-nous	-
10	950886		Front, Cabinet (complete)		Appelez-nous	-
11	950548		Front, Cabinet		Appelez-nous	-
12	649958		Filter, Air		Appelez-nous	-
13	476707		Retainer, Filter		Appelez-nous	-
14	649726		Seal, Front (bottom)		Appelez-nous	-
14	649725		Seal, Front (top & Sides)		Appelez-nous	-
15	649957		Louver, Vertical		Appelez-nous	-
16	852010		Handle, Louver		Appelez-nous	-
17	852209		Link, Louver		Appelez-nous	-
18	641484		Spring, Louver				$ 150.14
19	950547		Nameplate		Appelez-nous	-
20	649945		Support, Cabinet (2)		Appelez-nous	-
21	649946		Retainer, Support (2)		Appelez-nous	-
22	649947		Bracket, Support		Appelez-nous	-
23	644271		Angle, Top		Appelez-nous	-
24	644272		Angle, Side (2)		Appelez-nous	-
25	644288		Gasket, Sash		Appelez-nous	-
26	644303		Board, Filler		Appelez-nous	-
27	993848		Bag, Accessory		Appelez-nous	-
28	487371		Screw, No.10 Wood X 3/4``		Appelez-nous	-
29	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
30	488808		Washer (6)		Appelez-nous	-
31	486009		Washer, Lock (6)		Appelez-nous	-
32	486035		Nut, Hex 1/4-20 (6)		Appelez-nous	-
33	WP965173		Screw, No.8 S.m. X 3/8``   (Replaces: 488017)			Immediately	$ 10.68
34	WP308685		Screw, No.10 S.m. X 1/2``   (Replaces: 488720)			Immediately	$ 7.08
35	855265		Seal, Strip		Appelez-nous	-
36	852220		Seal, Cabinet Bottom		Appelez-nous	-
37	995274		Block, Spacer (4)		Appelez-nous	-
38	469877		Seal, Meeting		Appelez-nous	-
39	644288		Bracket, Window Lock		Appelez-nous	-
40	00649955		Rack, Louver (2)   (Replaces: 649955)				$ 488.32
41	947267		Louver, Handel		Appelez-nous	-
42	947268		Louver, Notched		Appelez-nous	-
43	947269		Louver, Horizontal (4)		Appelez-nous	-
44	855998		Retainer, Louver (4)		Appelez-nous	-
45	855999		Clip, Louver (4)		Appelez-nous	-
46	649949		Catch, Door		Appelez-nous	-
47	649943		Hinge, Door		Appelez-nous	-
48	950546		Door, Control		Appelez-nous	-
	LIT1155552		Sheet, Tech And Wiring Diagrm		Appelez-nous	-
	LIT789420		List, Repair Parts		Appelez-nous	-
	LIT950355		Guide, Use And Care		Appelez-nous	-
	LIT1155553		Guide, Energy		Appelez-nous	-
